B&C Speakers - 5CXN36 8+16 Ohm

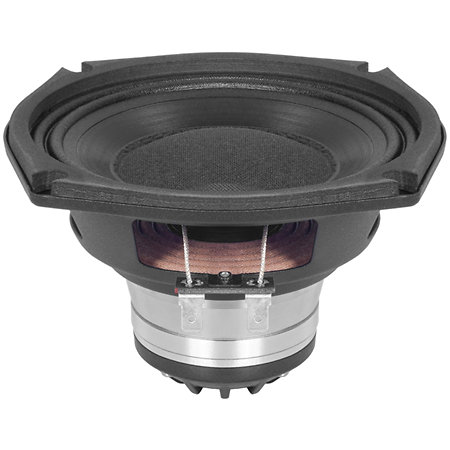

The B&C 5CXN36 8+16 Ohm loudspeaker provides a concrete response to the needs of designers of compact, high-performance audio systems. This 5-inch coaxial model combines two transducers in a single chassis, with a bass-midrange section and an integrated HF motor, for full-range distribution in perfect phase alignment.

The low-frequency section is based on a 34 mm copper coil with glass fibre support, for a power handling capacity of 100 W (200 W programme) and an efficiency of 89 dB. The WP treatment on the diaphragm ensures good performance in damp or harsh environments. On the treble, the 1.4" compression driver incorporates a 36mm aluminium coil and HT polymer dome, capable of going up to 18kHz with an output of 101dB.

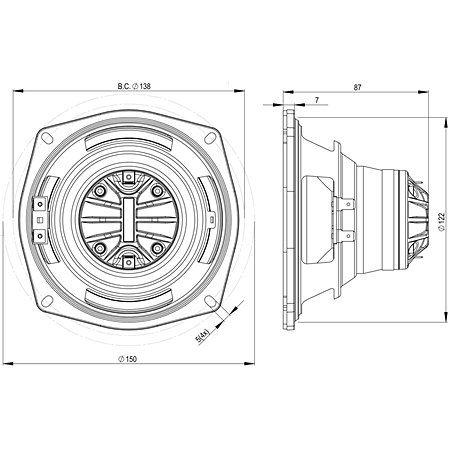

Despite its small dimensions (150 mm in diameter and less than 90 mm deep), the 5-CXN36 offers uniform cone coverage of 70° and remarkable linearity across the entire spectrum. Its neodymium magnet system keeps the weight down (650 g) without compromising electromagnetic performance.

Whether you're looking to equip a compact loudspeaker, a close monitoring solution or a discrete line-array system, this B&C 5 CXN 36 model - also known as the 5CXN36 8 16 Ohm - represents a reliable, balanced and easy-to-integrate alternative. Its intelligent design and quality components make it a relevant choice for manufacturers and contractors looking for a versatile, efficient and durable loudspeaker.
