B&C Speakers - 8NDL64 16 Ohm Speaker

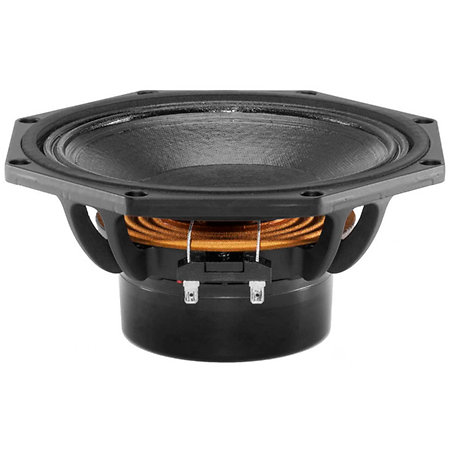

The B&C Speakers 8NDL64 16 Ohm is an 8-inch speaker designed to deliver detailed and responsive sound reproduction in a wide range of audio applications. Its design is based on a neodymium inside-slug magnet structure, optimized to maximize magnetic flux while reducing the overall weight of the motor.

Combined with a 64 mm copper voice coil, this architecture ensures precise response, excellent heat dissipation, and low power compression, even during prolonged use at high volumes.

Thanks to its frequency response spanning 80 Hz to 4 kHz, this speaker integrates equally well into low-frequency configurations as it does into dedicated midrange systems.

Its 97 dB sensitivity allows for high efficiency, thus optimizing the ratio between applied power and generated sound pressure. A copper cap has been integrated into the magnet assembly to extend the high-frequency response and improve the linearity of the response curve.

Its robust design includes a cone treated with a waterproof coating on the front face, providing increased resistance to humidity and harsh conditions. The dual-roll suspension and optimized spider ensure precise control of the cone displacement, enabling stable performance throughout the entire operating range.

This model is suitable for 10-liter bass-reflex loads tuned to 85 Hz, ensuring an optimal balance between bass extension and transient control.

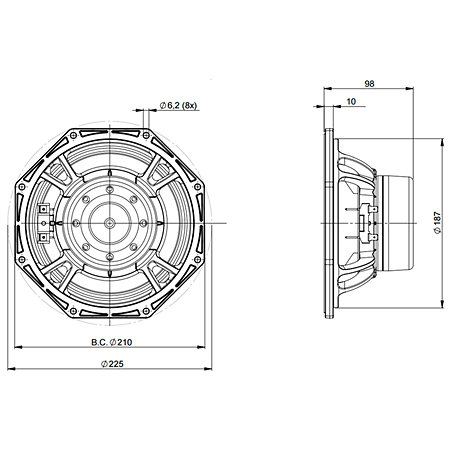

The B&C Speakers 8NDL64 16 Ohm is designed for secure mounting with an overall diameter of 225 mm and a cutout diameter of 187 mm. Its low weight of 2.6 kg facilitates its integration into compact speakers or modular systems.

With a depth of 95 mm, it offers extensive compatibility with various speaker designs. Its careful construction and technical characteristics make it a high-performance choice for applications requiring excellent midrange articulation and effective sound projection.
