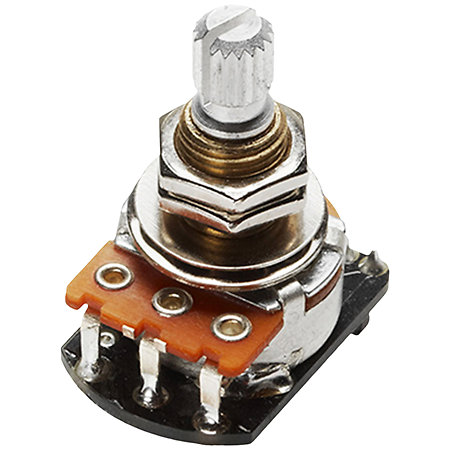

EMG - 25k Volume Split Shaft
19,17 €
excl VAT
including eco-part : 0,07 €
Out of stock
Contact us for delivery times
Guarantee 3
years
Fred
Eric
Do you need help?
Guitar Spare Parts
With the EMG 25K Volume Split Shaft, your EMG active microphones benefit from progressive, well-balanced control. This 25K ohm potentiometer stands out for its Solderless compatibility, thought out for clear and efficient wiring. A wise choice for modernising a Strat™ or refining an independent master volume!
ARTICLE N° 111597
Presentation
The EMG 25K Volume Split Shaft is more than just a component: it transforms the way you manage the signal from your active microphones. Its 25K ohms calibrated resistance and logarithmic audio curve provide welcome consistency in volume response.
The 8mm slotted shaft fits Strat™ knobs without constraint, and its format respects the dimensions of standard potentiometers, making it easy to replace without cumbersome adjustments. For those who prefer passive EMG-HZ pickups, the 250K and 500K versions meet the same requirements.
Its compatibility with the Solderless EMG system speeds up installation and makes wiring more reliable. The result: precise, silent and solid volume control, adapted to the constraints of the stage and the demands of the studio.
The 8mm slotted shaft fits Strat™ knobs without constraint, and its format respects the dimensions of standard potentiometers, making it easy to replace without cumbersome adjustments. For those who prefer passive EMG-HZ pickups, the 250K and 500K versions meet the same requirements.
Its compatibility with the Solderless EMG system speeds up installation and makes wiring more reliable. The result: precise, silent and solid volume control, adapted to the constraints of the stage and the demands of the studio.
Features
Type of guitar spare parts
Rotary potentiometer
Number of positions
1
Impedance
25 Ω
Type of guitar
Electric guitar, Electric bass
Instrument type
Electric guitar, Electric bass
Other features
-
EMG 25k Volume Split Shaft
-
B122 Volume Control 25K
-
Passive volume potentiometer
-
.
-
Compatibility: EMG active microphones (25K)
-
Passive version: 250K / 500K EMG-HZ
-
Resistance value: 25K Ohms (active)
-
Passive resistance value: 250K / 500K Ohms
-
Curve type: Audio Taper (logarithmic)
-
PCB 25K : Black
-
PCB 500K : Green
-
Number of pins: 6 (3 signal/ground pairs)
-
Pins 1-2: CW input/output
-
Pins 3-4: W (wiper) input/output
-
Pins 5-6: Duplicate CW (input/output)
-
Ground: Pins 2, 4 and 6
-
Connectors: Standard 2.54 mm (0.100")
-
Solder: 4 pads (input, output, ground)
-
Axis diameter: 8 mm
-
Direction of rotation: CCW / W / CW
-
Compatibility: EMG Solderless systems
-
Function: Master or independent volume
-
Mounting: Standard Strat™ type
-
.
-
Width : 32 mm
-
Depth: 24.5 mm
-
Height : 10,7 mm
-
Other dimensions: 13 mm / 10 mm
-
Visible axis length: 19 mm (≈0.75")
