Eminence - Signature PF-350 12" Paul Franklin
The Eminence PF-350 is a 12-inch speaker from the Paul Franklin Signature Series, designed to deliver complete tonal balance. Developed in collaboration with musician Paul Franklin, this model offers 350 watts of power with impressive volume scaling capability, ideal for pedal steel and electric guitar players. Its design allows for warm, clear tones, even at very high volumes. With an aggressive bass response, a round shape and a moderate midrange and treble response, this speaker is ideal for genres such as country and blues.
Presentation
With a usable frequency range of 65 Hz to 3.5 kHz, it maintains a clear and precise tone, even at high volume levels. The speaker design, with its aluminum voice coil and ferrite magnet, ensures reliable performance and long durability.
The Paul Franklin Signature Series is distinguished by its attentive approach to detail and sound quality.
The PF-350, with its 99 dB sensitivity and 350-watt power rating, is optimized for live performances and studio sessions.
Its cast aluminum construction and paper diaphragm are designed to provide complete tonal balance, making this speaker suitable for a variety of musical applications, particularly in the country and blues genres.
With a maximum linear excursion of 0.79 mm and a compliance equivalent volume of 61.94 liters, the PF-350 offers fast response and rich dynamics.
Its ability to handle powers of up to 700 watts and deliver clear, warm sound at high volume levels makes it particularly suitable for professional musicians who demand both robustness and sound quality.
The Eminence PF-350 combines advanced technical features with a musician-friendly design. Its paper diaphragm design and paper rim ensure faithful sound reproduction, while its die-cast aluminum structure provides efficient heat dissipation.
Other features
-
Eminence PF-350
-
Speaker
-
Manufacturer Part Number: 122674-U
-
Series: Signature Paul Franklin
-
Applications: Guitar Amp
-
Speaker: 12" (305 mm)
-
Nominal Impedance: 8 Ω
-
Program Power: 700 W
-
Nominal Power: 350 W
-
Resonance Frequency (fs): 63 Hz
-

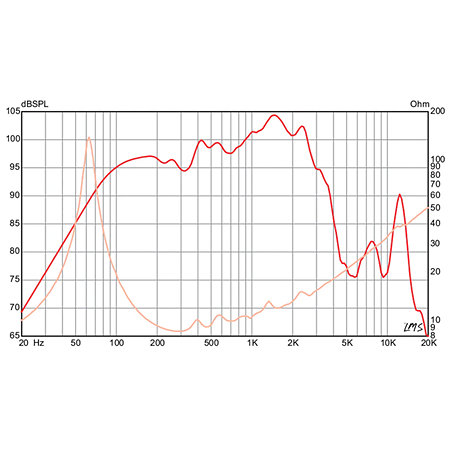

Usable Frequency Range: 65 Hz ⭢ 3.5 kHz
-
Sensitivity: 99 dB
-
Total Q (Qts): 0.42
-
Voice Coil: 4" (102 mm)
-
Maximum Linear Excursion (Xmax): 0.79 mm
-
Compliance Equivalent Volume (Vas): 61.94 liters / 2.19 cu.ft.
-
Max displacement volume: (Vd): 0 cc
-
Volume displaced by the speaker: 2.9 liters
-
Total diameter: 12.29" (312 mm)
-
Voice coil: Aluminum with rounded edge
-
Voice coil support: Polyimide
-
Magnet: ferrite
-
Structure materials: Cast aluminum
-
Diaphragm: Paper
-
Diaphragm edge: Paper
-
Dimensions: ∅ 312 x 127 mm
-
Weight: 9.75 kg
To find out more...
Designed specifically for pedal steel and electric guitar players, this speaker is distinguished by its tonal balance and ability to handle high volumes while maintaining exceptional clarity.
The Signature Series is known for its high-quality products, providing musicians with reliable, high-performance tools for their performances on stage and in the studio.
