Multichannel Amplifier
Class D amplifier equipped with a 4-channel DSP with graphic interface, the MDA 4125 has a total power of 500W. Usable in high or low impedance, it can power 4 lines of 125W or 2 of 250W.
ARTICLE N° 89040
Presentation
The new FBT MDA4000 series power amplifiers combine a 4-channel DSP and feature a flexible Class D power supply.
This series offers 3 4-channel models, with a total power from 500W to 3000W in Hi-Z or Low-Z output configuration.
Their compact and lightweight design makes them ideal for use in multi-zone applications in small and medium-sized installations, either in stand-alone mode or in complex centralized audio systems.
All models offer multiple analog and digital input options, a built-in wireless access point, a wired LAN connection and programmable control inputs that can be used for remote control.
The MDA series can meet the requirements of each speaker system, providing a dynamic listening experience and a more satisfying environment. In addition, FBT's custom speaker libraries help the installer make setup quick and easy.
This series offers 3 4-channel models, with a total power from 500W to 3000W in Hi-Z or Low-Z output configuration.
Their compact and lightweight design makes them ideal for use in multi-zone applications in small and medium-sized installations, either in stand-alone mode or in complex centralized audio systems.
All models offer multiple analog and digital input options, a built-in wireless access point, a wired LAN connection and programmable control inputs that can be used for remote control.
The MDA series can meet the requirements of each speaker system, providing a dynamic listening experience and a more satisfying environment. In addition, FBT's custom speaker libraries help the installer make setup quick and easy.
Features
Canals
4
Effects
Audio signal processed by DSP
Amplification type
Class D
Peak power (W)
1000
RMS power (W)
500
Weight
7,4 kg
Power supply
220 V
Packaging
Single unit
19" rack
Kit sold separately, 1U
Connectors
RCA female, Terminal block / Euroblock
Input channels
4
Other features
-
FBT MDA 4125
-
Multichannel power amplifier
-
Series: MDA4000
-
Class D
-
Low impedance: 4 / 8 / 16Ω
-
High impedance: 70V / 100V line
-
Total power: 500W
-
4Ω: 2x 250W
-
8Ω: 2x 250W
-
16Ω: 4x 125W
-
4-channel DSP: input, zone, output and speaker processing
-
Frequency response: 20Hz - 20kHz
-
Signal to noise ratio: >106dBA
-
Distortion: < 0.05%
-
Output voltage:
-
70Vp / 140Vpp (unloaded)
-
Bridged 140Vp / 280Vpp (unloaded)
-

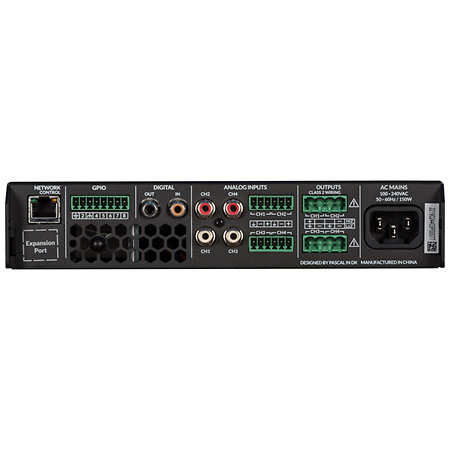

Connections:
-
4 balanced/unbalanced analog inputs
-
4 speaker outputs
-
8-pin GPIO interface: remote control features
-
100/1000 BASE-T Ethernet network connection
-
Built-in Wi-Fi access point
-
SPDIF digital inputs and outputs: System expansion
-

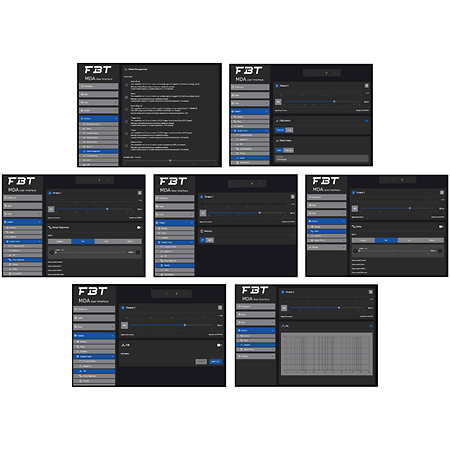

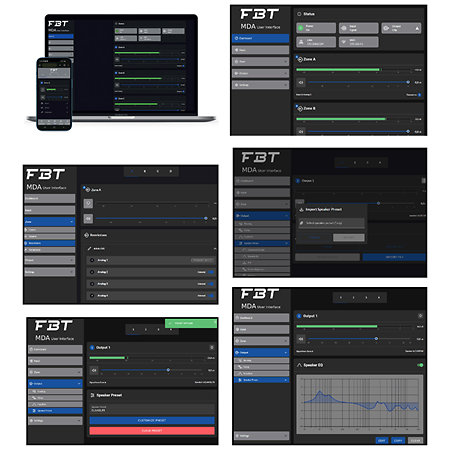

Built-in web server and intuitive user interface
-
Protections against: short circuit, under/over voltage, overheating
-
Power supply: 220V
-
19" Rack kit sold separately (MDA-RM)
-
Wall installation kit sold separately (MDA-WM)
-
Dimensions: 320 x 220 x 44mm
-
Weight: 2.8kg
To find out more...
- 4-channel DSP configuration, including: input processing, zone processing, output and speaker processing
- SPDIF digital inputs and outputs used to connect other compatible equipment or to digitally expand the system
- Noise masking for offices and medical facilities
- Automatic power sharing
- Temperature-controlled cooling fan speed
- Automatic standby mode
- Universal power supply with PFC
- Energy Star compliant
- SPDIF digital inputs and outputs used to connect other compatible equipment or to digitally expand the system
- Noise masking for offices and medical facilities
- Automatic power sharing
- Temperature-controlled cooling fan speed
- Automatic standby mode
- Universal power supply with PFC
- Energy Star compliant
