Studio Channel

The 32Classic MS combines the legendary Harrison preamp with a musical EQ that’s perfect for any source. Its built-in mix bus streamlines the production workflow and allows multiple units to be cascaded. High-pass and low-pass filters finely shape the signal without sacrificing character.

ARTICLE N° 101634
The 32Classic MS features a high-performance analog channel strip that brings Harrison heritage into your production environment. Its Jensen JT-MB-CPCA transformer-based mic preamp delivers remarkable sonic warmth, delivering deep bass and silky highs.

The 4-band parametric EQ derived from the 32Classic console ensures precise and musical management of each frequency range, while Harrison high-pass and low-pass filters work in harmony to sculpt the signal without ever distorting it.

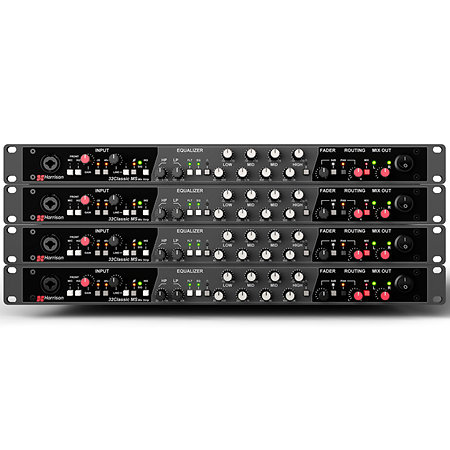

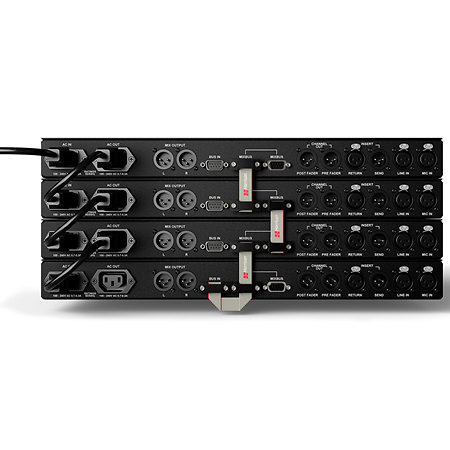

Its integrated stereo mix bus, coupled with summing connectors, allows multiple units to be cascaded to form a modular system that meets the most varied hybrid recording and mixing needs.

Dedicated XLR Mic and Line inputs provide significant flexibility. A front-panel input, combining Mic and Instrument/Hi-Z, facilitates access to a variety of configurations.

48V phantom power, a -20dB pad and phase inversion provide precise control, while the pre- and post-fader direct outputs give you total control when sending to your recording device.

The balanced insert point, placed between the mic preamp and the filter section, accommodates a compressor or any other external processor.

The integrated fader can be finely adjusted to achieve a suitable balance or can be bypassed to record at unity gain. The tracks or stereo buses thus created benefit from the distinctive Harrison character, famous for having shaped the sound of legendary productions.

The 32Classic MS allows you to gradually build a professional sidecar or to reinforce an existing studio setup, while maintaining the sound quality that marked the greatest albums.

Its robust design is ideal for tracking sessions, mixing and mobile configurations.
Pre-amp
 Yes
Micro input
 2
Instrument input
 Yes
Phantom power
 Yes
Power supply
 220 V
19" rack
 1U
  • Harrison 32Classic MS
  • Channel Strip
  • Dedicated Mic and Line XLR inputs on the rear panel.
  • Selectable Instrument/Hi-Z and Mic combi-XLR input on the front panel.
  • The mic preamp uses the legendary Jensen JT-MB-CPCA transformer.
  • Harrison 4-band parametric EQ with proportional Q from the 32Classic console.
  • Legendary Harrison low-pass and high-pass filters.
  • Unique mixer section that allows the channel signal to feed a stereo mix bus with panning. The mix bus balance can be cascaded across multiple 32Classic MS units.
  • Each 32Classic MS unit includes a balanced insert point.
  • .
  • Specification:
  • .
  • Microphone preamp:
  • Minimum gain - 20 dB
  • Maximum gain - 70 dB
  • Input impedance - 5.8 K
  • Input impedance with attenuator - 1.3K
  • Maximum input level without attenuator - +4 dBu
  • Maximum input level with attenuator - +24 dBu
  • THD 50 dB Gain - < 0.01%
  • Frequency response 20 Hz - 20 KHz +/- 0.25 dB
  • Ein < -129 dBu
  • .
  • Line Level Input :
  • Input Impedance - 10K
  • Line Trim - +/- 9.5 dB
  • Maximum Input Level - +24 dBu
  • THD +4dBu Line Input To Stereo Mix Output < 0.01% (THD +4dBu Line Input To Stereo Mix Output)
  • Frequency Response 20 Hz - 20 KHz +/- 0.25 dB
  • .
  • Line Level Outputs :
  • Maximum Output Level - +24 dBu
  • Output Impedance - 30 Ohms
