Martin Audio - FlexPoint FP8 (l'unité)

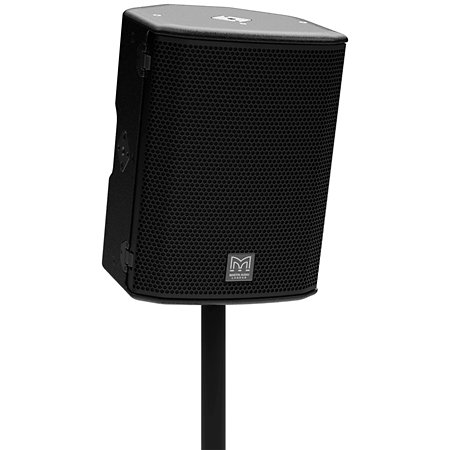

The Martin Audio FlexPoint FP8 is an ultra-compact 2-way passive loudspeaker designed for short-throw professional applications. Its coaxial point-source configuration ensures even, accurate sound distribution, while its 8" neodymium driver and 1" compression driver provide clarity and dynamics. Thanks to its discreet multi-angle cabinet and rotary motor, the FP8 is easily adapted to both fixed and mobile installations, with controlled coverage of 90° x 70°.
Presentation
Despite its small size, the FP8 develops an impressive acoustic pressure for its size, with a maximum SPL of 124 dB peak. Its wide, accurate frequency response means it is equally well suited to short-range main broadcast applications as to reinforcement or monitoring roles. Its controlled 90° x 70° directivity ensures clear, even projection, ideal for theatres, places of worship, bars, restaurants or immersive spaces.
Its birch plywood cabinet has a multi-angle design that makes it easy to integrate into a wide range of settings. The coaxial motor can be quickly oriented to maintain the correct dispersion in either horizontal or vertical installation. This flexibility simplifies installation and allows the diffusion to be adapted to each configuration.
Designed for both contractors and integrators, the FP8 has numerous mounting points, a double-tilt pole-mount and integrated handles. Compatible with iKON or VIA amplifiers and modelable using DISPLAY 3 software, it is easy to integrate into a modern professional system.
Compact, accurate and versatile, the FP8 is a particularly effective solution for high-end audio installations and discrete sound reinforcement applications.
Features
Other features
-
Martin Audio FlexPoint FP8 (single)
-
Ultra-compact 2-way coaxial point source passive loudspeaker
-
Point-source design with rotary motor for portrait or landscape use
-
Versatile multi-angle enclosure for front of house, stage monitors or discrete fixed installations
-
Loudspeakers
-
Bass driver: 8" (200 mm) with 2" coil and low-distortion neodymium motor
-
HF compression: 1" output with 1.7" high-temperature polymer diaphragm
-
Passive crossover with 2 kHz cut-off frequency
-
Audio performance
-
Frequency response: 63 Hz - 18 kHz (±3 dB)
-
Extended: up to 50 Hz (-10 dB with preset)
-
Sensitivity: 94 dB (2.83 V / 1 m)
-
Power handling: 250 W AES / 1000 W peak
-
Maximum SPL: 118 dB continuous / 124 dB peak
-
Dispersion: 90° horizontal x 70° vertical
-
Construction
-
Robust birch plywood enclosure
-
Durable textured black paint finish
-
Quick-release steel grille with triple-layer polyester fabric
-

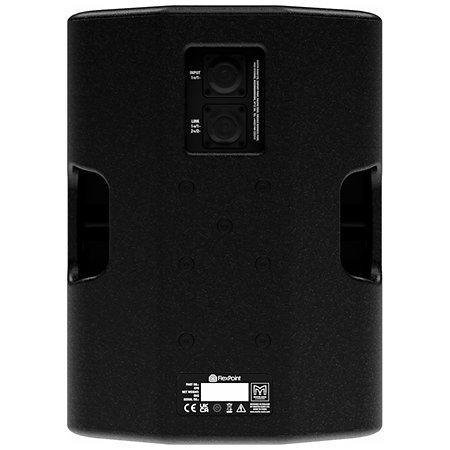

Connectors
-
2 speakON NLT4MPXX connectors
-
Pinout: 1+ / 1- input, 1+/- and 2+/- in link
-
Installation
-
4-point M10 and 15-point M6 for mounting accessories
-

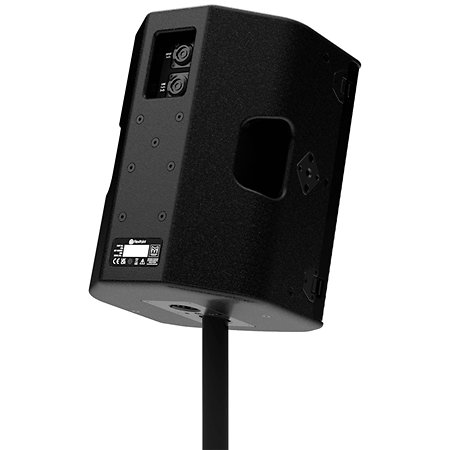

Double pole-mount base with 0° or 15° inclination
-
Two integrated handles for easy handling
-
Protection: IP54 rating against dust and water splashes (with suitable speakON connectors)
-
System compatibility
-
Recommended amplification: Martin Audio iKON or VIA
-
Compatible controllers: DX4.0, DX0.4 or DX0.6
-
Can be modelled with DISPLAY 3 software
-
Dimensions: 376 x 280 x 265 mm
-
Weight: 9.3 kg
