Passive Loudspeaker

The Yamaha CXR15 MK3 bundle comprises two 15" passive speakers designed for sound reinforcement systems with external amplification. With 300 W RMS per speaker, an impedance of 8 Ω and a maximum sound pressure level of 126 dB, this bundle delivers greater bass presence whilst remaining suitable for both mobile stages and fixed installations. The Ø35 mm mounting sockets, suspension points and 52° return angle facilitate a variety of set-up configurations.

ARTICLE N° 124501

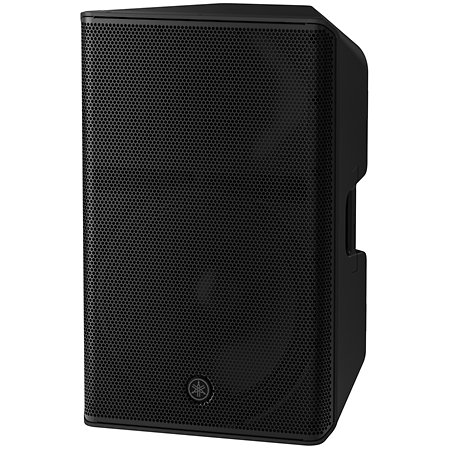

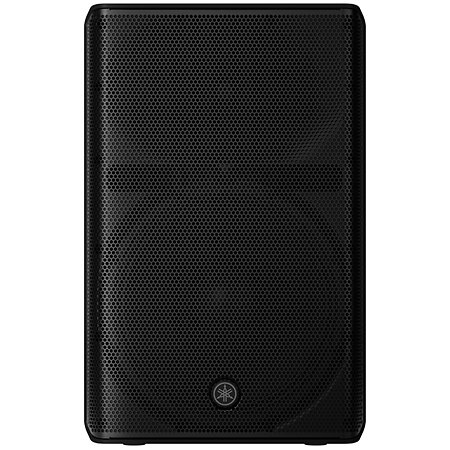

The Yamaha CXR15 MK3 set is designed for set-ups where a passive loudspeaker capable of delivering more low-end punch is required. The two 15" loudspeakers are powered by an external amplifier, allowing them to be integrated into existing systems or bespoke installations. Their bass-reflex design makes them suitable for a wide variety of applications, from live performances to professional events. The 15" size naturally provides a more substantial sound than more compact models.

Each speaker operates at 8 Ω with a power handling capacity of 300 W RMS and a peak power of 1200 W. Yamaha recommends a 600 W RMS amplifier at 8 Ω to fully realise their potential. The 15" driver is paired with a 1" compression driver for high-frequency reproduction. The frequency response ranges from 50 Hz to 20 kHz with a crossover frequency of 1.8 kHz.

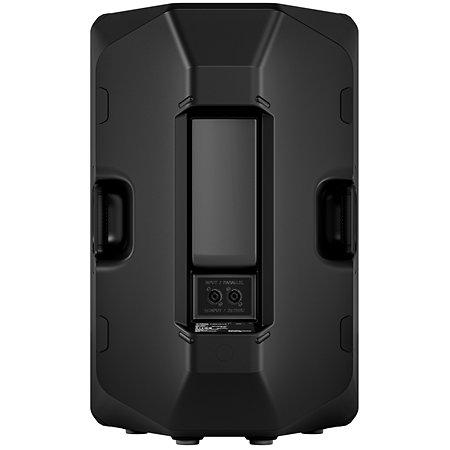

Sound dispersion is provided by a horizontal coverage of 90° and a vertical coverage of 60°, ensuring uniform coverage across the listening area. The parallel SpeakON NL4MP connectors facilitate daisy-chain or distribution cabling depending on the installation. The polypropylene enclosure is designed to withstand regular movement and repeated installation. The Ø35 mm mounting sockets allow for stand mounting with a tilt of up to -7°.

The 52° angle also allows for use as a monitor when the speakers are placed on the floor. The M10 and M8 suspension points offer several mounting options for fixed installations. Finally, Yamaha provides a warranty of up to 7 years for this set, subject to the products being registered on its website within 6 months of purchase.
  • Set of 2 speakers, comprising:
  • .
  • Yamaha CXR15 MK3
  • 2 passive speakers
  • Bass-reflex design
  • Impedance: 8Ω
  • Peak power: 1200 W
  • RMS power: 300 W
  • Recommended amplifier: 600 W RMS @ 8Ω
  • Max SPL: 126 dB
  • .
  • Woofer: ∅381 mm (15")
  • Voice coil: ∅76 mm (3")
  • Magnet: Ferrite
  • Tweeter: ∅2.54 mm (1") throat compression driver
  • Tweeter diaphragm: ∅44.45 mm (1.75") polyimide
  • Tweeter magnet: Ferrite
  • Frequency response: 50 Hz ⭢ 20 kHz
  • Crossover frequency: 1.8 kHz
  • Directivity: H90° x V60°
  • .
  • Connectors: 2x SpeakON NL4MP (Parallel)
  • Enclosure: Polypropylene, Black
  • Floor monitor angle: 52°
  • Mounting points: M10 & M8
  • ∅35 mm inserts: 2 (0° & -7°)
  • Dimensions of one speaker: 699 x 447 x 380 mm
  • Weight: 38 kg
  • .
  • Warranty: up to 7 years
  • Following registration on the Yamaha website within 6 months
The dual-angle mounting bracket integrated into the Yamaha CXR15 MK3 adjusts the dispersion angle according to the height of the audience. This allows you to direct the sound energy towards the target area, improving perceived clarity without unnecessarily increasing the overall volume.

The specific positioning of the ports on this loudspeaker limits the formation of internal standing waves. This design contributes to a more consistent bass response, with fewer variations depending on the volume or nature of the audio signal.
Yamaha - Pack CXR15 MK3 (la paire)
Yamaha - Pack CXR15 MK3 (la paire)
New
1 331,67 € excl VAT
Out of stock
Guarantee 7  years
