Multi-effects

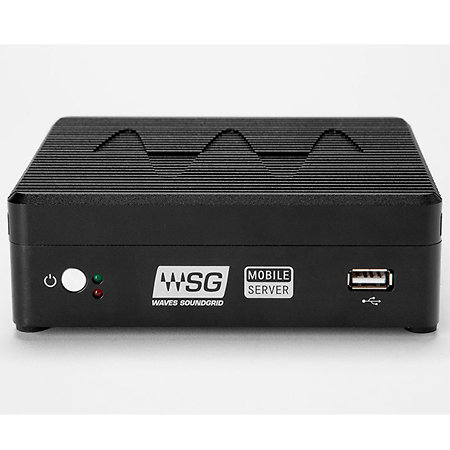

Ultra-compact but terribly efficient, the Waves Mobile SoundGrid Server turns any nomadic setup into a DSP powerhouse capable of managing plugins in real time.

ARTICLE N° 106693
The Waves Mobile Server offers ultra-high-performance DSP processing in a compact format, ideal for mobile live performance or mobile studio setups with Waves plug-ins.

The Mobile SoundGrid Server may fit in the palm of your hand, but it knows how to make itself heard. This little box packs an Intel Core i5 processor and 4GB of RAM, enough to run a good fifty Waves plugins live without batting an eyelid, with latency measured at 0.8 milliseconds. Ideal for minimalist setups, touring gigs or modular studios.

It's the perfect travel companion for sound engineers who travel light but want to keep a tight rein on their processing. A rucksack, a laptop, a SoundGrid interface, this mobile server... and you're ready to mix live, record, or even re-record in mobile conditions. All without sacrificing processing quality or responsiveness.

The aluminium casing is built to withstand travel: solid, lightweight (680g), and sufficiently well ventilated to withstand high temperatures. When it comes to connectivity, the essentials are there: Ethernet, HDMI, USB and an external 12V power supply. No extraneous noise, no complex settings. It connects, it integrates, it runs.

At comparable performance levels, the Mobile Server is a very attractive option for compact configurations. Where a rack server would be cumbersome or oversized, it fits naturally into a mobile workflow, while remaining compatible with the same interfaces and software as the largest SoundGrid servers.

It's ideal for freelance technicians, small live control rooms and content creators who need power without a fixed workstation. It's the perfect solution for those who want high-performance plug & play, without having to lug around a whole processing rack.
Power supply
 Power adapter (included)
Weight
 680 g
  • Waves Mobile SoundGrid Server
  • Ultra-compact DSP server for Waves plugins
  • Processor: Intel Skylake Core i5-6200u
  • RAM: 4 GB RAM
  • Storage: Integrated SSD
  • Network card: Realtek integrated
  • Audio performance
  • Minimum latency: 0.8 ms (44.1 to 96 kHz)
  • Real-time processing of Waves plugins via SoundGrid interface
  • Compatibility: 44.1, 48, 88.2 and 96 kHz

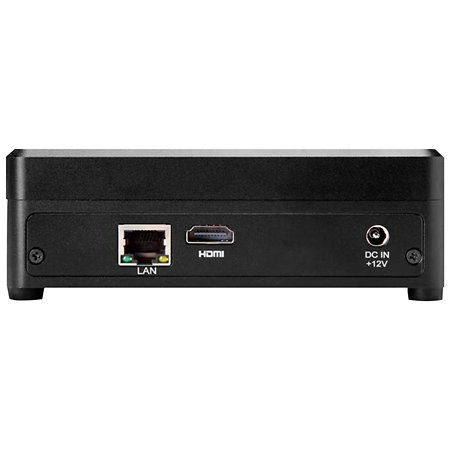

  • Connections: 1 x Ethernet RJ45 (SoundGrid), 1 x HDMI (service only), 2 x USB 3.0 (service only)
  • External power supply: 12V / 3A
  • Format & design
  • Enclosure: Heavy-duty aluminium
  • Environmental conditions
  • Operating CPU temperature: 30° to 75°C
  • Maximum CPU temperature: 85°C
  • Operating ambient temperature: 10° to 35°C
  • Max ambient temperature: 40°C
  • Ideal use :
  • Mobile live mixing
  • Field recording
  • Mobile light post-production
  • Portable configurations with eMotion LV1 or SuperRack
  • Dimensions: 139.7 x 137.1 x 37.8 mm
  • Weight: 680 g
  • Total package weight: 2.7 kg
Waves - Mobile SoundGrid Server
Waves - Mobile SoundGrid Server
1 598,33 € excl VAT
including eco-part : 0,07 €
Out of stock
Contact us for delivery times
Guarantee 3  years
