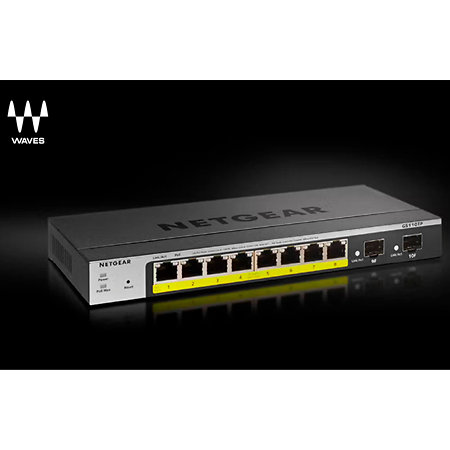

Quiet, compact and SoundGrid certified, the NETGEAR GS110TP v3 switch secures your professional audio network with 10 reliable Gigabit ports, even in critical stage conditions.
ARTICLE N° 106851
Presentation
The GS110TP v3 is designed for live sound engineers, theatre technicians and integrators working in noise-sensitive environments. With its fanless design, this switch ensures totally silent operation, while remaining robust thanks to its compact, rack-mountable metal chassis.
Its official SoundGrid certification makes it a natural choice for extending or structuring a Waves audio network. Whether you need to connect a DSP server, interfaces or several mixing stations in a network, its eight Gigabit RJ45 ports with integrated PoE power supply cover all needs. Each port can deliver up to 30 watts, for a cumulative total of 55 watts, enough to power a large number of devices.
The two SFP ports allow you to extend the reach of your network by up to 500 metres with fibre optics, using the appropriate modules. This is crucial when you need to connect a stage to a remote control room without any loss of performance. In addition, the switch supports link aggregation (LAG), useful for doubling bandwidth or securing critical connections.
This switch is therefore ideal for latency-sensitive audio applications requiring clean, stable routing without interference. It's the perfect tool for structuring a reliable, scalable and discreet network, without adding noise or heat, whether in the studio, on stage or on tour.
Its official SoundGrid certification makes it a natural choice for extending or structuring a Waves audio network. Whether you need to connect a DSP server, interfaces or several mixing stations in a network, its eight Gigabit RJ45 ports with integrated PoE power supply cover all needs. Each port can deliver up to 30 watts, for a cumulative total of 55 watts, enough to power a large number of devices.
The two SFP ports allow you to extend the reach of your network by up to 500 metres with fibre optics, using the appropriate modules. This is crucial when you need to connect a stage to a remote control room without any loss of performance. In addition, the switch supports link aggregation (LAG), useful for doubling bandwidth or securing critical connections.
This switch is therefore ideal for latency-sensitive audio applications requiring clean, stable routing without interference. It's the perfect tool for structuring a reliable, scalable and discreet network, without adding noise or heat, whether in the studio, on stage or on tour.
Features
Power supply
Power adapter (included)
Packaging
Single unit
Color
Black
Other features
-
Waves NETGEAR GS110TP v3
-
SoundGrid certified 10-port Gigabit network switch
-
Format: 1U half-rack, metal enclosure
-
Design: Fanless, silent operation
-
RJ45 ports :
-
8 Gigabit Ethernet RJ45 ports (10/100/1000 Mbps)
-
PoE 802.3af compatible
-
Power per PoE port: up to 30 W
-
Total PoE budget: 55 W
-
SFP ports :
-
2 Gigabit SFP (Small Form-Factor Pluggable) ports
-
Compatible with NETGEAR AGM731F fibre optic modules
-
Distance supported via fibre: up to 500 m
-
Switching bandwidth: 20 Gbps
-
Throughput: 14.8 Mpps
-
Wi-Fi security (management via interface) :
-
WEP 64/128 bit encryption, WPA/WPA2, mixed WPA
-
WPS (Wi-Fi Protected Setup)
-
Advanced functions via additional firmware (QoS, VLAN, NAT, firewall, etc.)
-
Network features :
-
LAG (Link Aggregation) support
-
Configuration via web interface
-
Network class: Class C
-
Compatible with SoundGrid topologies (Waves)
-
Power supply :
-
Integrated universal power supply
-
Voltage: 100-240 V AC
-
Frequency: 50/60 Hz
-
Power consumption: 30 W max, 0.4 A
-
Box contents :
-
Switch GS110TP v3
-
Power cable
-
4 external radio antennas (if Wi-Fi enabled)
-
Mounting accessories (depending on pack)
-
Certifications and compatibility :
-
Waves approval for SoundGrid systems
-
Compatible with standard Waves computers and network devices
-
Designed for live, broadcast, theatre, studio and network AV applications
-
Dimensions: 236 x 102 x 27 mm
-
Weight: 0.76 kg
-
Total packed weight: approx. 1.5 kg
