Mipro - Pack ACT-515 + ACT-500T
495,83 €
excl VAT
including eco-part : 0,14 €
Out of stock
Contact us for delivery times
Guarantee 3
years
Wireless Microphone
A smart, compact wireless package, the Mipro ACT-500T + ACT-515 combines a bodypack transmitter with a true diversity UHF receiver for reliable, stable transmission. This single-channel analogue system features extensive compatibility, a wide frequency range (24 MHz) and flexible operation, designed for both mobile applications and fixed installations. The Mipro brand is continuing its accessible technical approach, combining advanced functions with straightforward operation.
ARTICLE N° 106907
Composition of the package
Presentation

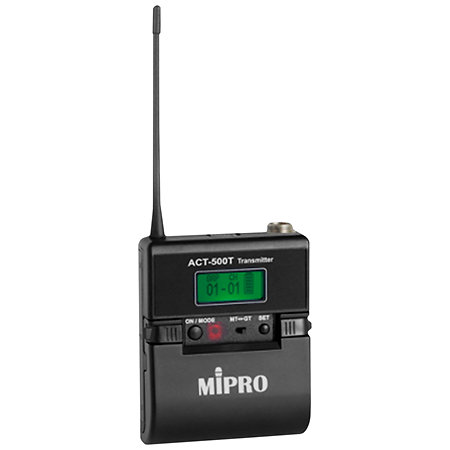

Ever had those moments when a cable plays hide-and-seek or turns your performance into an involuntary choreography? Mipro has tackled the problem head-on with the ACT-500T, a pocket-sized UHF transmitter. This small, all-purpose module features a backlit LCD display, a mixed battery or rechargeable battery power supply, and a Mic/Line impedance switch to better adapt to your accessories. And because a belt twist can be quicker than a chorus, an integrated belt clip ensures a fuss-free fit.
The ACT-515 doesn't just talk to the transmitter: it stabilises it. Thanks to its true analogue diversity technology, it juggles between two antennas to ensure a clean, smooth transmission. With 7 predefined groups, 1 user group, and a total of 961 frequencies available, there's plenty of room to run your gamut without crossing paths with your neighbour. And as a bonus: PC compatibility, an intelligent autoscan, and fine tuning that lets you adapt your setup like you would a good groove.
The ACT-515 doesn't stop at stability: it also speaks the language of the studio. Balanced XLR outputs, unbalanced ∅6.35 mm jacks, audio level controls and even network connections via ACT-BUS. In short, the kind of receiver that knows how to make friends with the whole sound chain. Musicians will appreciate its extended response range from 50 Hz to 18 kHz, while technicians will keep an eye (reassured) on the easy-to-read LCD screen.
This pack may come without a microphone, but it knows how to surround itself. Compatible with Mipro MU series headset and tie microphones, it fits naturally into an existing setup or one under construction. Its half-rack format makes it easy to integrate, whether you're on stage, in a conference room or at the local church. A simple, adaptable and discreet solution - but not silent.
The ACT-515 doesn't just talk to the transmitter: it stabilises it. Thanks to its true analogue diversity technology, it juggles between two antennas to ensure a clean, smooth transmission. With 7 predefined groups, 1 user group, and a total of 961 frequencies available, there's plenty of room to run your gamut without crossing paths with your neighbour. And as a bonus: PC compatibility, an intelligent autoscan, and fine tuning that lets you adapt your setup like you would a good groove.
The ACT-515 doesn't stop at stability: it also speaks the language of the studio. Balanced XLR outputs, unbalanced ∅6.35 mm jacks, audio level controls and even network connections via ACT-BUS. In short, the kind of receiver that knows how to make friends with the whole sound chain. Musicians will appreciate its extended response range from 50 Hz to 18 kHz, while technicians will keep an eye (reassured) on the easy-to-read LCD screen.
This pack may come without a microphone, but it knows how to surround itself. Compatible with Mipro MU series headset and tie microphones, it fits naturally into an existing setup or one under construction. Its half-rack format makes it easy to integrate, whether you're on stage, in a conference room or at the local church. A simple, adaptable and discreet solution - but not silent.
Other features
-
Wireless transmitter/receiver set, comprising :
-
.
-
Mipro ACT-500T
-
Pocket transmitter for wireless system
-
Analogue single-channel transmitter
-
Frequency range: UHF
-
Carrier frequencies: UHF 480 ⭢ 934 MHz (depending on country)
-
Bandwidth: 24 MHz
-
RF output power: 10 mW / 50 mW switchable (depending on country)
-
Interference emission : < 4 nW
-
Gain adjustment: ±12 dB (preset @ 0 dB)
-
Maximum audio input: 0 dBV
-
Switchable input impedance setting (Mic / Line)
-
Mute function
-
Backlit LCD display
-
Integrated belt clip
-
Connectors: mini XLR 4-pin
-
Power supply: 2x 1.5 V LR6/AA batteries or 18500 lithium-ion battery (supplied)
-
USB-C connection (for battery charging)
-
Compatible with MP-800 / MP-820 charging stations sold separately
-
Dimensions: 80 x 63 x 25 mm
-
Weight : 96 g
-
+
-
Mipro ACT-515
-
UHF receiver for wireless system
-
Single-channel analogue receiver
-
Frequency range: UHF
-
Technology: true analogue diversity
-
Frequency groups: 7 preset groups / 1 user group
-
Memory channels: up to 80 (preset) + 16 customised out of 961 available frequencies
-
Carrier frequencies: UHF 480 ⭢ 934 MHz (depending on country)
-
Bandwidth: 24 MHz
-
Frequency response: 50 Hz ⭢ 18 kHz
-
Dynamic range: > 111 dBA
-
Selectable audio output level:
-
TS ∅6.35 mm jack, Unbalanced: -6 dB / 0 dB / +10 dB
-
XLR, balanced: -6 dB / 0 dB / +16 dB
-
PC interface for remote control, up to 64 channels
-
ACT-BUS protocol (Mipro DVU adapter required, sold separately)
-
Software compatibility: Mipro RCS2.Net and FSA compatible channels calculator
-
PiloTone & NoiseLock circuits: minimise interference
-
UHF PLL-synthesised technology: improved stability & reduced interference
-
Functions :
-
SQ: adjustable sensitivity (greater distance // less interference)
-
Autoscan: Scan of available frequencies & selection of the most stable ones
-
Display: Backlit LCD screen
-
Connections :
-
Outputs: XLR + TS jack ∅6.35 mm
-
Antenna inputs: 2x TNC (with power supply for Mipro antenna systems)
-
ACT-BUS input/output: 2x RJ11 (6P4C)
-
Power supply: 100~240V AC switching power adapter
-
Format Standard Rack 19" ½U
-
Dimensions: 210 × 163 × 44 mm
-
Weight: 900 g
-
.
-
Supplied WITHOUT microphone!
-
To be used with Mipro MU series tie or headband microphones, sold separately.
To find out more...
For those looking to take the concept further, the ACT-500T can be charged directly via USB-C, or via the MP-800 and MP-820 docking stations sold separately.
As for the ACT-515, it works flawlessly within a network of up to 64 channels if you use the Mipro DVU adapter. It's a great way to upgrade your installation without calling everything into question.
Also consider the MU-53HN headband microphones or MU-55L ties for a tailor-made combination.
As for the ACT-515, it works flawlessly within a network of up to 64 channels if you use the Mipro DVU adapter. It's a great way to upgrade your installation without calling everything into question.
Also consider the MU-53HN headband microphones or MU-55L ties for a tailor-made combination.
