The Sennheiser EW-D 835-S SET (S4-7) digital wireless microphone system makes public speaking easier thanks to its handheld transmitter, which features the e 835 capsule and a built-in mute button. With up to 8 hours’ battery life on the supplied AA batteries and up to 12 hours with the BA 70 battery (sold separately), this system meets the needs of both stage performances and public speaking.
ARTICLE N° 128313
Sennheiser - EW-D 835-S SET (S4-7)
Sennheiser - EW-D 835-S SET (S4-7)
573,33 €
excl VAT
In Stock
Usually ships within 3 days
+infos
Guarantee 3
years
Louis
Do you need help?
Presentation

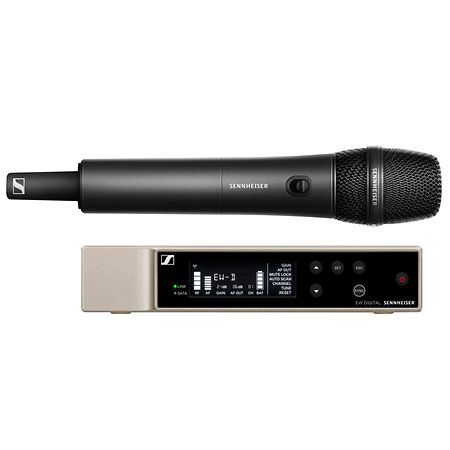

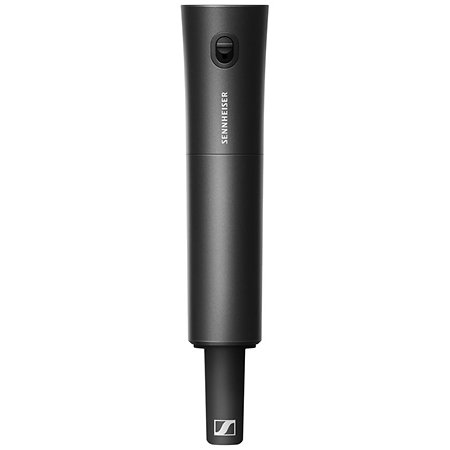

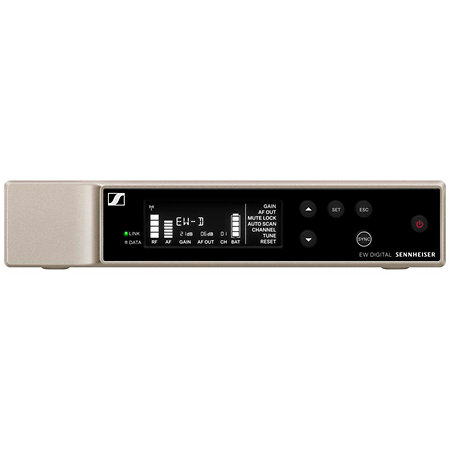

For vocal performances, the Sennheiser EW-D 835-S SET (S4-7) digital wireless microphone system combines a handheld transmitter fitted with the e 835 capsule with an EW-D EM fixed receiver. Its built-in mute button allows for quick control of the transmission directly from the microphone, whilst the EW-D Smart Assist app makes it easy to configure and control the system via Bluetooth Low Energy.
The UHF digital transmission operates in the 630–662 MHz frequency range. Automatic scanning helps to find suitable frequencies, and the 134 dB audio input dynamic range helps to preserve signal detail without the need for sensitivity adjustment. The 56 MHz tuning bandwidth allows for the use of up to 90 channels, depending on the configuration and operating conditions.
In terms of power supply, two 1.5 V AA batteries are supplied, providing up to eight hours’ operation. To extend session times, the BA 70 rechargeable battery, sold separately, offers up to twelve hours’ battery life. Before a performance, check that the frequencies are available and that the batteries are sufficiently charged. This system is a practical solution for singers, public speaking and stage applications requiring a digital wireless link.
The UHF digital transmission operates in the 630–662 MHz frequency range. Automatic scanning helps to find suitable frequencies, and the 134 dB audio input dynamic range helps to preserve signal detail without the need for sensitivity adjustment. The 56 MHz tuning bandwidth allows for the use of up to 90 channels, depending on the configuration and operating conditions.
In terms of power supply, two 1.5 V AA batteries are supplied, providing up to eight hours’ operation. To extend session times, the BA 70 rechargeable battery, sold separately, offers up to twelve hours’ battery life. Before a performance, check that the frequencies are available and that the batteries are sufficiently charged. This system is a practical solution for singers, public speaking and stage applications requiring a digital wireless link.
Other features
-
Sennheiser EW-D 835-S SET (S4-7)
-
Digital wireless microphone system
-
Kit contents: EW-D EM fixed receiver, EW-D SKM-S handheld transmitter and MMD 835 microphone capsule
-
Audio frequency band: 630 to 662 MHz
-
Transmission technology: Digital UHF
-
Microphone capsule: MMD 835
-
Transducer type: Dynamic
-
Polar pattern: Cardioid
-
Sensitivity: 2.1 mV/Pa
-
Sound pressure level: 154 dB SPL
-
Audio frequency response: 20 Hz to 20 kHz (-3 dB) at 3 dBFS
-
Total harmonic distortion (THD): ≤ -60 dB at 1 kHz, at an input level of -3 dBFS
-
Audio input dynamic range: 134 dB
-
System latency: 1.9 ms
-
Control app: EW-D Smart Assist
-
App connectivity: Bluetooth Low Energy (BLE)
-
Bluetooth frequency range: 2,402 to 2,480 MHz
-
Frequency configuration: Auto Scan
-
Selectable frequencies: Up to 2,240
-
Tuning bandwidth: 56 MHz
-
Number of channels: Up to 90, depending on conditions and system configuration
-
Channel spacing: 600 kHz
-
Transmitter power supply: 2 x 1.5 V AA alkaline batteries or BA 70 rechargeable battery
-
Claimed battery life: Up to 8 hours with the two supplied AA batteries or up to 12 hours with the lithium-ion battery (sold separately)
-
Audio transmission power: 10 mW ERP
-
Bluetooth transmission power: 10 mW EIRP maximum
-
Maximum audio output level of the receiver: 18 dBu
-
Receiver power supply: 11 to 13 V DC
-
Receiver power consumption: ≤ 300 mA
-
Operating temperature: -10 °C to +55 °C
-
Operating relative humidity: 5 to 95 per cent, non-condensing
-
Dimensions of the EW-D EM receiver: 212 × 44 × 189 mm
-
Receiver weight: Approx. 1,000 g, excluding antennas and power supply unit
-
Transmitter dimensions with MMD 835 module: 50 × 268 mm
-
Dimensions of the transmitter without microphone module: 40 × 200 mm
-
Weight of the transmitter with MMD 835 module, excluding batteries: Approx. 304 g
-
Weight of the transmitter without the microphone module, excluding batteries: Approx. 195 g
-
Dimensions of the packaged kit: 405 × 350 × 73 mm
-
Weight of the packaged kit: 3 kg
To find out more...
Before purchasing, check that the 630–662 MHz frequency band complies with local regulations and is compatible with other wireless systems in your area of use.
For extended use, ensure you have spare AA batteries or a compatible BA 70 rechargeable battery (sold separately) to enjoy the advertised battery life of up to 12 hours with this battery.
For extended use, ensure you have spare AA batteries or a compatible BA 70 rechargeable battery (sold separately) to enjoy the advertised battery life of up to 12 hours with this battery.
