Mipro - Pack MU 23D + Émetteur miniature + Récepteur
430,83 €
excl VAT
including eco-part : 0,35 €
Victim of its success
Contact us for delivery times
Guarantee 3
years
Wireless Microphone
Lightweight and discreet on stage: discover the Mipro wireless system with MU-23D headband microphone. This pack, complete with ACT-22T transmitter and ACT-311II receiver, frees your movements with a virtually invisible omnidirectional microphone. Ideal for presenters and performers, it guarantees natural voice pick-up and reliable UHF transmission.
ARTICLE N° 115839
Composition of the package
Presentation
The elegance of a wireless system often lies in what you can't see, and the Mipro MU-23D headband microphone, supplied in this pack with the ACT-22T transmitter and ACT-311II receiver, masters this art to perfection. Its headband is so thin, its 3 mm omnidirectional capsule so tiny, that it literally blends into your silhouette. For your audience, only your voice exists, out of nowhere. It's the ideal tool for TV presenters, stage magicians and museum guides when visual appearance is paramount.
The omnidirectional capsule has a precise role: it captures your voice in a natural way, without the narrow focus that can sometimes make it sound 'miked'. It envelops you in a gentle bubble of capture. The adjustable headband and anti-perspiration ring ensure a comfortable fit, even when you're working hard. You can forget it's there. The detachable Mini XLR connection makes it easy to replace the cable, a detail that counts over time.
The transmitter-receiver pair forms the nervous system of the whole package. The ACT-22T transmitter, compact and powered by a long-life battery, is concealed under a jacket. The ACT-311II rack-mount receiver, with its True Diversity reception, acts as a bodyguard for your audio signal. It monitors two reception paths and constantly chooses the loudest, eliminating the risk of clipping. NoiseLocke circuitry eradicates electrical noise, the crackling that is so disturbing in a quality audio system.
This Mipro pack is ideal for environments where reliability is non-negotiable. Think of a theatre company on tour, a lecturer in a large auditorium, or a vocal coach leading a workshop. It provides the technical peace of mind of a professional UHF link.
The omnidirectional capsule has a precise role: it captures your voice in a natural way, without the narrow focus that can sometimes make it sound 'miked'. It envelops you in a gentle bubble of capture. The adjustable headband and anti-perspiration ring ensure a comfortable fit, even when you're working hard. You can forget it's there. The detachable Mini XLR connection makes it easy to replace the cable, a detail that counts over time.
The transmitter-receiver pair forms the nervous system of the whole package. The ACT-22T transmitter, compact and powered by a long-life battery, is concealed under a jacket. The ACT-311II rack-mount receiver, with its True Diversity reception, acts as a bodyguard for your audio signal. It monitors two reception paths and constantly chooses the loudest, eliminating the risk of clipping. NoiseLocke circuitry eradicates electrical noise, the crackling that is so disturbing in a quality audio system.
This Mipro pack is ideal for environments where reliability is non-negotiable. Think of a theatre company on tour, a lecturer in a large auditorium, or a vocal coach leading a workshop. It provides the technical peace of mind of a professional UHF link.
Other features
-
Headband microphone + Miniature transmitter + Receiver pack, including :
-
.
-

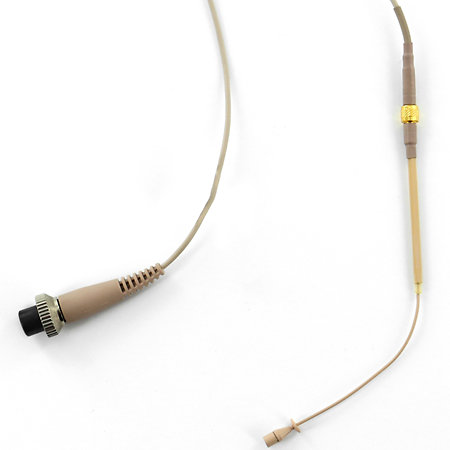

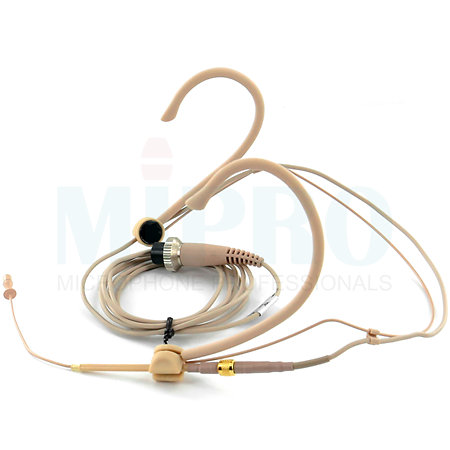

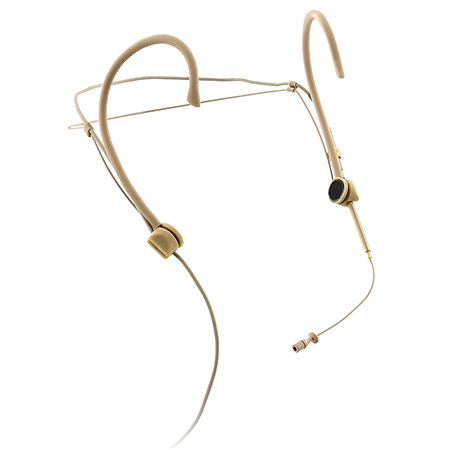

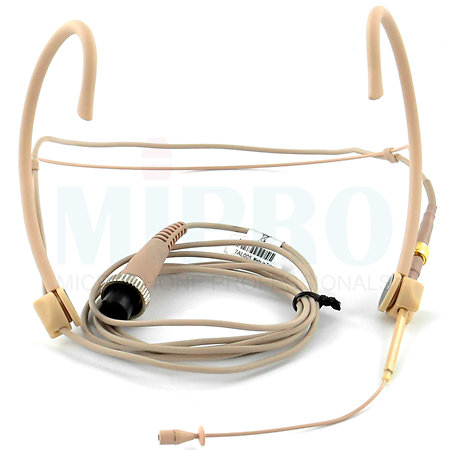

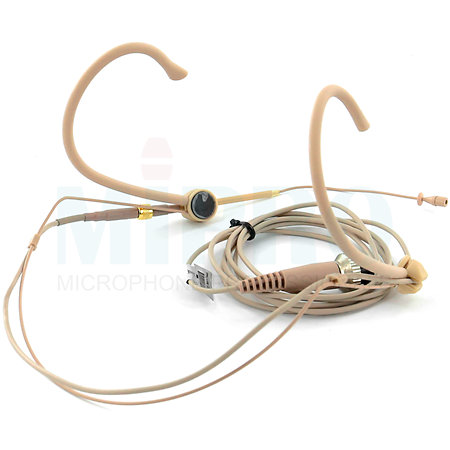

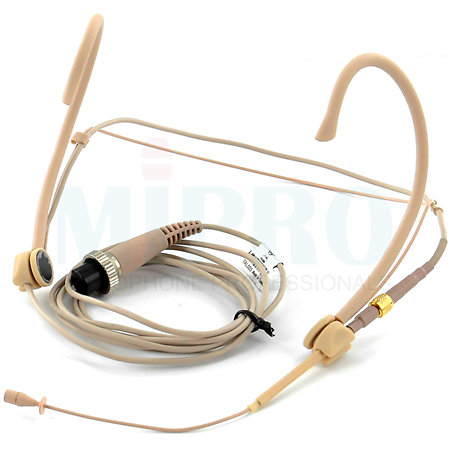

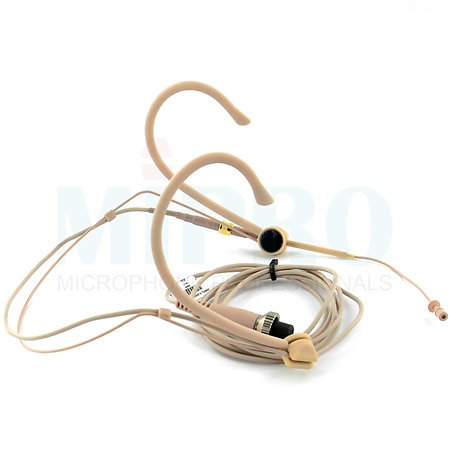

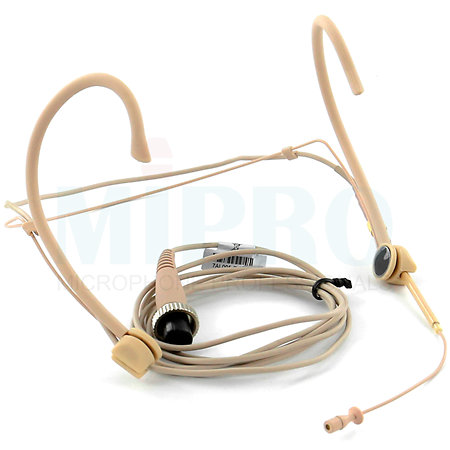

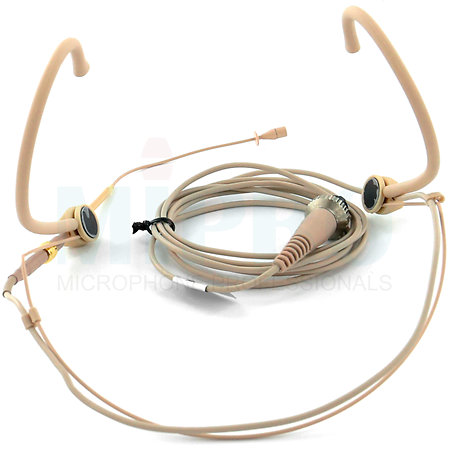

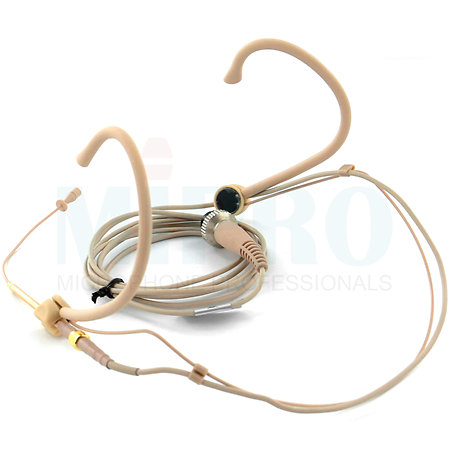

Mipro MU-23D
-
Headset microphone
-
Type: electret condenser
-
Capsule Ø 3 mm
-
Directionality: omnidirectional
-
Frequency response : 40 Hz ⭢ 20 kHz
-
Sensitivity : -56 dBV / Pa (0 dB = 1 V / Pa)
-
Max SPL: 138 dB
-
Adjustable boom for right or left-hand use
-
Extremely thin, adjustable headband
-
Anti-transpiration ring and anti-pop windscreen included
-
Comfortable and stable, even when moving quickly
-

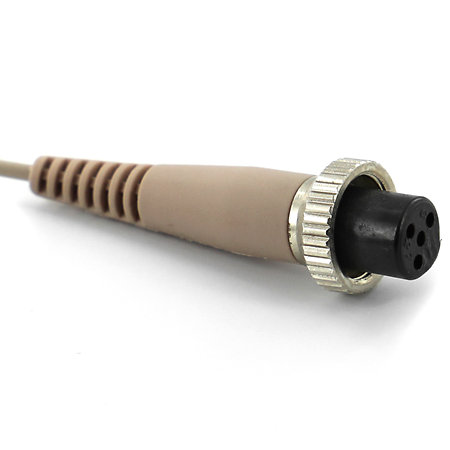

Connections: Mini XLR 4-pin
-

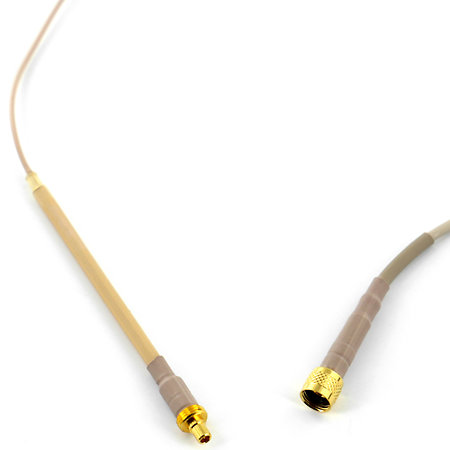

Detachable cable: 1.5 m
-
Colour: beige
-
Weight: 22 g
-
.
-
Mipro ACT-22T
-
Miniature transmitter
-
Modulation : Analogue
-
Carrier frequencies: 518 ⭢ 542 MHz
-
Bandwidth : 24 MHz
-
Compatible channels: 16
-
Integrated antenna
-
ACT function: Fast synchronisation
-
Connections: Microdot male (UNF 10-32)
-
Power supply : Built-in lithium-ion battery (8MPBA222T)
-
Operating time: Up to 6 hours
-
Dimensions: 180 × 26 × 20 mm
-
Weight: 41 g
-
.
-

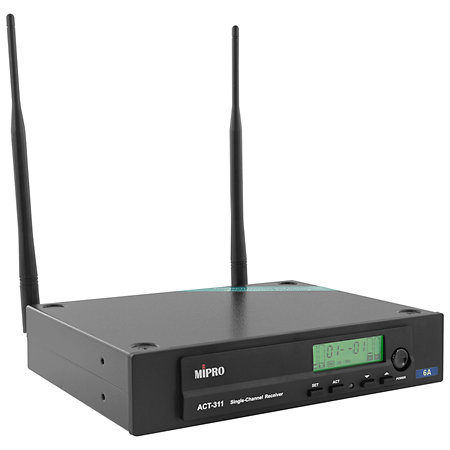

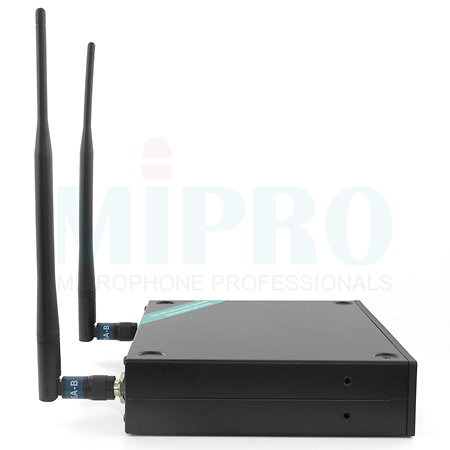

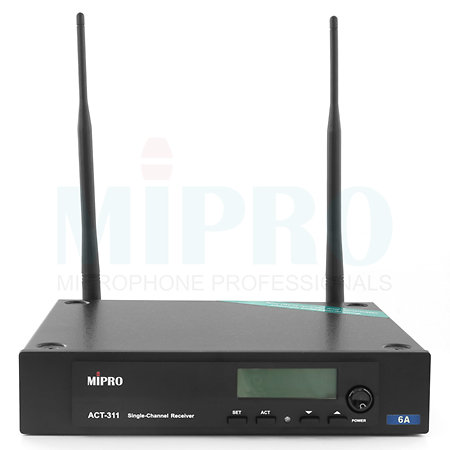

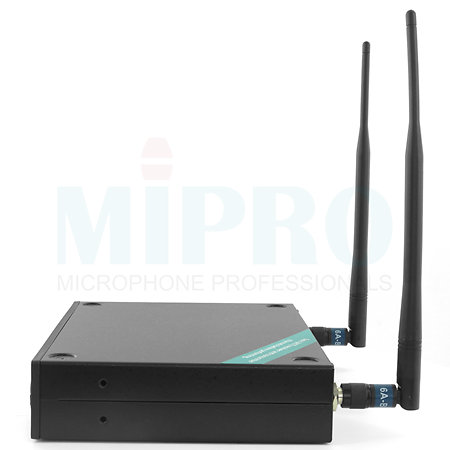

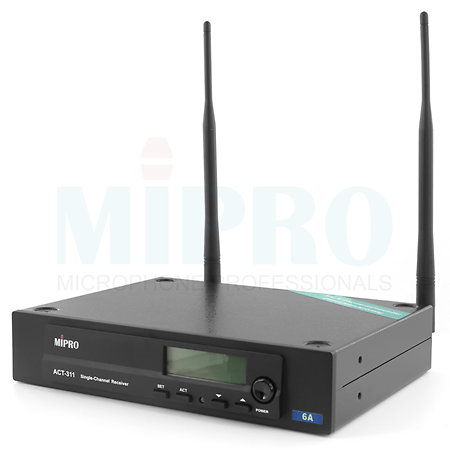

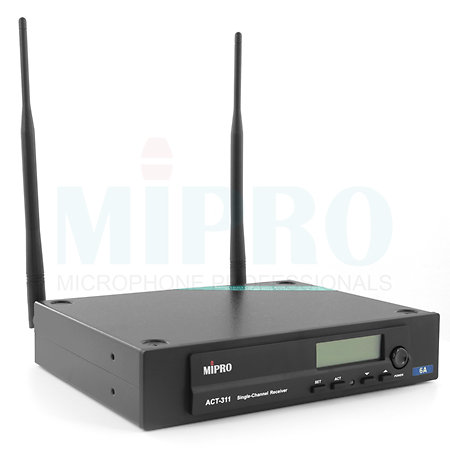

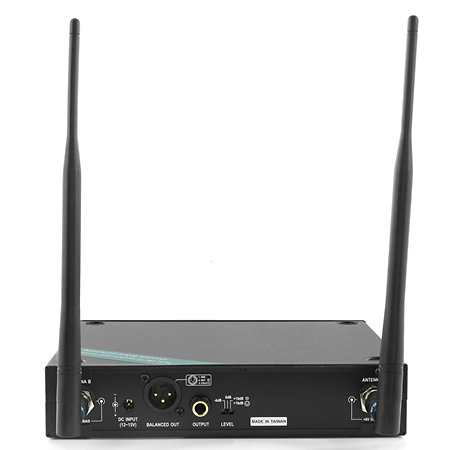

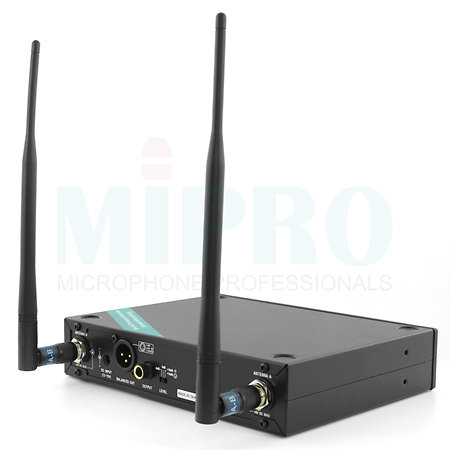

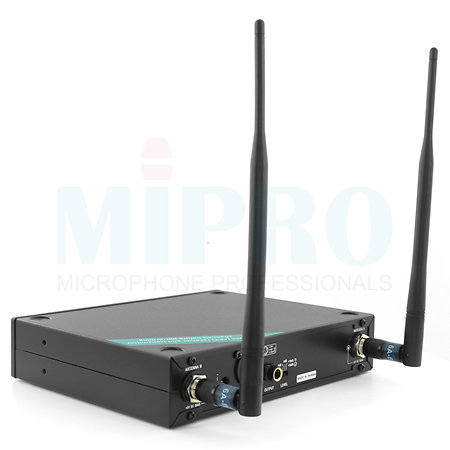

Mipro ACT-311II
-
Receiver for wireless transmission
-
1-channel True Diversity receiver
-
Modulation : Analogue
-
Reception mode : Diversity
-
Carrier frequencies : UHF 470 ⭢ 694 MHz
-
Bandwidth: 24 MHz
-
Multi-frequency: 10 groups / 16 channels
-
Presets: 7 groups, 80 frequencies
-
Functions : ACT, Squelch, Auto Scan
-
PiloTone & NoiseLocke circuits
-
Frequency response: 50 Hz ⭢ 18 kHz
-
Backlit LCD display
-

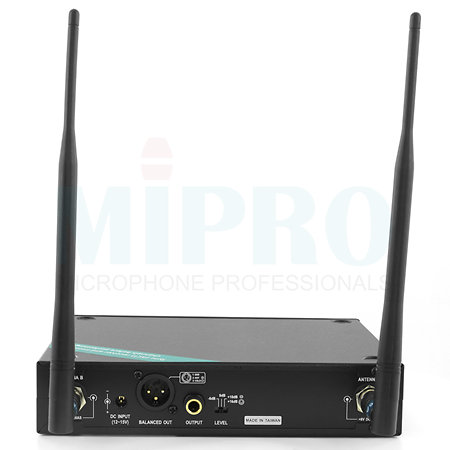

Outputs: XLR + Jack ∅6,35 mm
-
Power supplies: DC 12/15 V adapter
-
Standard format Rack 19" ½U
-
Dimensions: 210 x 165 x 44 mm
-
Weight : 950 g
To find out more...
- Compatible with :
- ACT-32T
- ACT-52T
- ACT-72T
- ACT-24TC
- ACT-32T
- ACT-52T
- ACT-72T
- ACT-24TC
