Electric Guitar Effects
The MXR TRS Split + Tap effects pedal includes a footswitch that adjusts the tempo of effects or changes parameters. The Left and Right jacks handle the signals of the left and right channels. The TRS jack transmits or receives a TRS signal. The TAP jack sends a control signal to adjust the tempo or change modes. Internal switches configure the TAP jack's contact handling.
ARTICLE N° 98732
Presentation
The MXR Split + Tap is an effects pedal that can be used to control the tempo of effects or change the parameters of an effects unit via its footswitch.
Simply connect a standard instrument cable to the TAP output to the appropriate input on the effect.
To split a stereo signal into left/right channels, plug a TRS cable into the TRS input of the Split + Tap and use two instrument cables for the Left and Right outputs to your mono devices.
To combine mono signals into a TRS path, connect the mono outputs to the inputs of this model and connect a TRS cable to your stereo device.
This reference is pre-configured to work with the MXR Joshua Ambient Echo. To adjust the tip/ring wiring, remove the bottom plate.
Simply connect a standard instrument cable to the TAP output to the appropriate input on the effect.
To split a stereo signal into left/right channels, plug a TRS cable into the TRS input of the Split + Tap and use two instrument cables for the Left and Right outputs to your mono devices.
To combine mono signals into a TRS path, connect the mono outputs to the inputs of this model and connect a TRS cable to your stereo device.
This reference is pre-configured to work with the MXR Joshua Ambient Echo. To adjust the tip/ring wiring, remove the bottom plate.
Other features
-
MXR TRS Split + Tap
-
Electric guitar effects pedal
-
Signal splitter
-
Footswitch adjusts tempo or switches effects
-

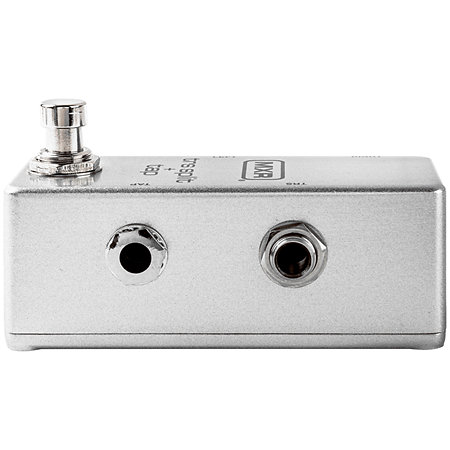

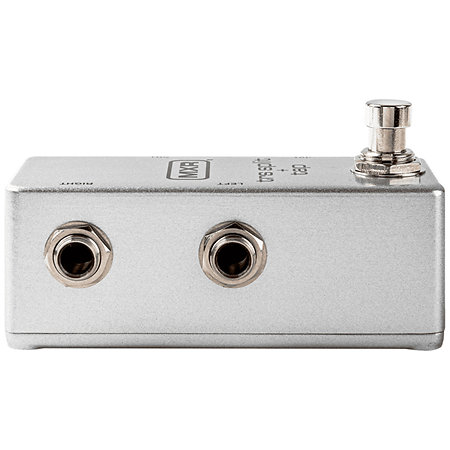

Jacks: left for left channel signal, right for right channel signal, TRS for TRS signal transmission, TAP for control signal
-
Internal switches for TAP configuration
-
Easy integration into pedalboards
-
Dimensions: 141 x 116 x 42 mm
-
Weight: 240 g
