For stage performances and presentations, the Sennheiser EW-D ME2/835-S SET (Y1-3) digital wireless microphone system combines an ME 2 lavalier microphone and a handheld microphone fitted with an MMD 835 capsule. The EW-D Smart Assist app makes it easy to manage the system via Bluetooth Low Energy. Its digital UHF transmission operates in the 1785.2 to 1799.8 MHz frequency range, with automatic scanning to simplify setup.
ARTICLE N° 128405
Sennheiser - EW-D ME2/835-S SET (Y1-3)
Sennheiser - EW-D ME2/835-S SET (Y1-3)
832,50 €
excl VAT
In Stock
Usually ships within 3 days
+infos
Guarantee 3
years
Louis
Do you need help?
Presentation

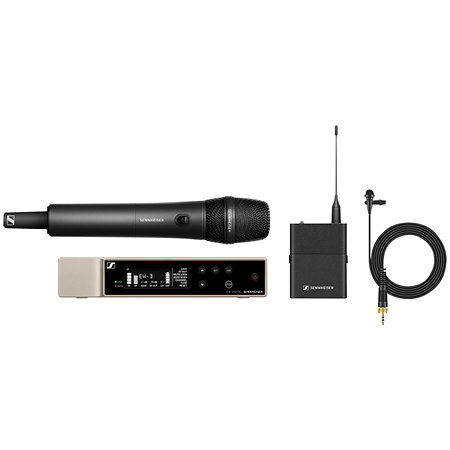

Designed for a wide range of applications, the Sennheiser EW-D ME2/835-S SET (Y1-3) comprises a rack-mounted EW-D EM receiver, an EW-D SK bodypack transmitter, an EW-D SKM-S handheld transmitter, an ME 2 lavalier microphone and an MMD 835 capsule.
This combination allows you to choose between a handheld microphone and a lavalier microphone depending on the situation. The ME 2 clips onto clothing, whilst the MMD 835 capsule is fitted to the handheld microphone. The system uses digital UHF transmission in the 1785.2 to 1799.8 MHz frequency range.
To manage the settings, the EW-D Smart Assist app connects via Bluetooth Low Energy. Automatic frequency scanning helps to find a suitable setting. The system offers 2,240 selectable frequencies, a channel spacing of 600 kHz and a claimed latency of 1.9 ms.
The pack includes the antennas, the power supply with mains adaptors and the rack-mounting kit. Four AA batteries are supplied for the two transmitters. The claimed battery life is up to eight hours with two AA batteries per transmitter.
This combination allows you to choose between a handheld microphone and a lavalier microphone depending on the situation. The ME 2 clips onto clothing, whilst the MMD 835 capsule is fitted to the handheld microphone. The system uses digital UHF transmission in the 1785.2 to 1799.8 MHz frequency range.
To manage the settings, the EW-D Smart Assist app connects via Bluetooth Low Energy. Automatic frequency scanning helps to find a suitable setting. The system offers 2,240 selectable frequencies, a channel spacing of 600 kHz and a claimed latency of 1.9 ms.
The pack includes the antennas, the power supply with mains adaptors and the rack-mounting kit. Four AA batteries are supplied for the two transmitters. The claimed battery life is up to eight hours with two AA batteries per transmitter.
Other features
-
Sennheiser EW-D ME2/835-S SET (Y1-3)
-
Digital wireless microphone system
-
Transmission: digital UHF
-
Warranty: 2 years
-
System components
-

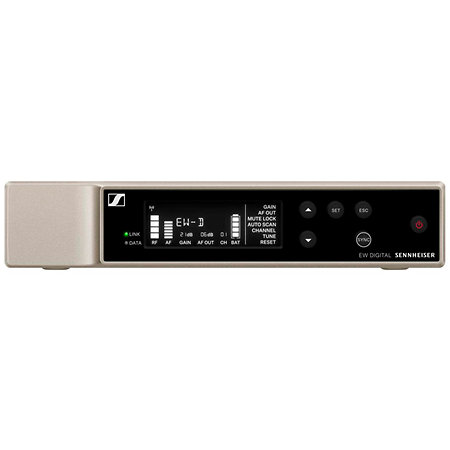

Receiver: EW-D EM, rack-mount
-
Bodypack transmitter: EW-D SK
-

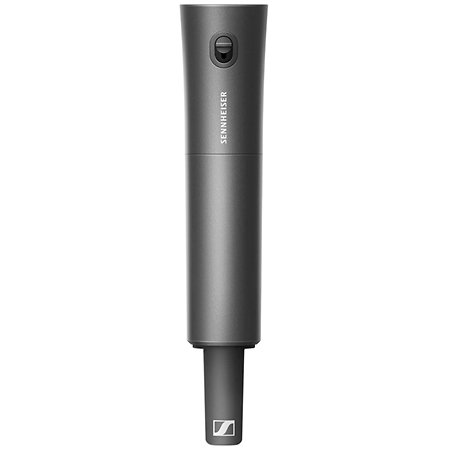

Handheld transmitter: EW-D SKM-S
-
Lavalier microphone: ME 2
-
Handheld microphone capsule: MMD 835
-
Microphone clip: MZQ 1
-
Audio specifications
-
Specified transducer type: dynamic
-
Polar pattern: cardioid for the MMD 835 capsule; omnidirectional for the ME 2
-
Sensitivity: 2.1 mV/Pa
-
Maximum sound pressure level: 130 dB
-
Audio frequency response: 20 Hz to 20 kHz (-3 dB)
-
Audio input dynamic range: 134 dB
-
Latency: 1.9 ms
-
Total harmonic distortion: ≤ −60 dB at 1 kHz with an input level of −3 dBFS
-
Frequencies and transmission
-
Frequency range: 1785.2 to 1799.8 MHz
-
Audio transmission power for the Y1-3 version: 12 mW ERP
-
Tuning bandwidth: 56 MHz
-
Selectable frequencies: 2,240
-
Channel spacing: 600 kHz
-
Number of channels available: up to 90
-
Automatic frequency scanning: yes
-
Management and connectivity
-
Management app: EW-D Smart Assist
-
Connection to the app: Bluetooth Low Energy
-
Bluetooth frequency band: 2,402 to 2,480 MHz
-
Audio connection: wireless
-
Specified connector: 3.5 mm jack
-
Power supply
-
Number of batteries supplied: 4
-
Battery type: AA, 1.5 V
-
Claimed battery life: up to 8 hours with 2 AA batteries per transmitter
-
Battery life with the optional lithium-ion battery pack: up to 12 hours
-
Lithium-ion battery pack: sold separately
-
Dimensions and weight
-
Dimensions: 212 x 44 x 189 mm
-
Weight: 3.1 kg
-
Lavalier microphone cable length: approx. 1.60 m
-
Contents of the box
-
1 EW-D EM receiver
-
1 EW-D SK bodypack transmitter
-
1 EW-D SKM-S handheld transmitter
-
1 ME 2 lavalier microphone
-
1 MMD 835 microphone capsule
-
1 MZQ 1 microphone clip
-
2 rod antennas
-
1 NT 12-5 CW power supply with mains adaptors
-
1 GA 3 rack-mounting kit
-
4 rubber feet
-
1 quick start guide
-
1 safety guide
-
1 manufacturer’s declaration
To find out more...
Before purchasing, please check that the frequency range 1785.2 to 1799.8 MHz is authorised and suitable for your location.
Both transmitters can be powered by the AA batteries supplied; the optional lithium-ion battery pack, sold separately, offers a claimed battery life of up to 12 hours
Both transmitters can be powered by the AA batteries supplied; the optional lithium-ion battery pack, sold separately, offers a claimed battery life of up to 12 hours
