Wireless Microphone
The Shure SLXD4Q+ S50 Wireless Receiver is a powerful and flexible solution that manages up to four channels in a single rack unit. Designed for seamless 24-bit digital transmission and optimized frequency management, it is ideal for live events, fixed installations, and conferences.
ARTICLE N° 104001
Presentation

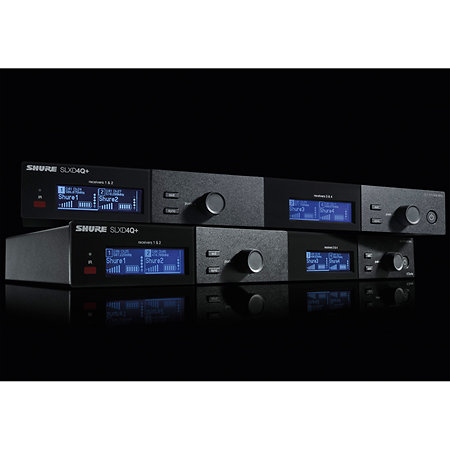

The Shure SLXD4Q+ S50 is a four-channel digital wireless receiver that delivers stable RF performance and professional audio quality for a wide range of applications.
Designed to simplify the management of multiple transmitters in a confined space, this receiver optimizes rack space while ensuring clear and reliable 24-bit digital audio transmission. It operates at a wide 138 MHz bandwidth, allowing for flexible frequency assignment.
RF cascading allows up to eight receivers to be daisy-chained for extended coverage without the need for additional equipment.
The SLXD4Q+'s intuitive interface allows for simplified setup, with automatic frequency scanning and fast infrared transmitter synchronization.
Built-in audio summing allows outputs to be grouped into mono, stereo, or four independent channels, adapting to the requirements of public address and broadcast systems. This receiver features four XLR outputs and four 6.35mm jack outputs, providing optimal connectivity for professional equipment.
Network management is made easy with two Ethernet ports, which enable integration with Shure Wireless Workbench software and real-time remote monitoring. Its rugged metal housing ensures durability, while the power options offer flexibility with two AA batteries or an optional SB903 rechargeable battery pack, guaranteeing up to eight hours of battery life.
The SLXD4Q+ S50 works with a wide range of SLX-D handheld, bodypack, and lavalier transmitters, making it a versatile and scalable choice for audio professionals. It is ideal for venues requiring optimized RF management, such as conference rooms, theaters, concert halls, and live events.
Designed to simplify the management of multiple transmitters in a confined space, this receiver optimizes rack space while ensuring clear and reliable 24-bit digital audio transmission. It operates at a wide 138 MHz bandwidth, allowing for flexible frequency assignment.
RF cascading allows up to eight receivers to be daisy-chained for extended coverage without the need for additional equipment.
The SLXD4Q+'s intuitive interface allows for simplified setup, with automatic frequency scanning and fast infrared transmitter synchronization.
Built-in audio summing allows outputs to be grouped into mono, stereo, or four independent channels, adapting to the requirements of public address and broadcast systems. This receiver features four XLR outputs and four 6.35mm jack outputs, providing optimal connectivity for professional equipment.
Network management is made easy with two Ethernet ports, which enable integration with Shure Wireless Workbench software and real-time remote monitoring. Its rugged metal housing ensures durability, while the power options offer flexibility with two AA batteries or an optional SB903 rechargeable battery pack, guaranteeing up to eight hours of battery life.
The SLXD4Q+ S50 works with a wide range of SLX-D handheld, bodypack, and lavalier transmitters, making it a versatile and scalable choice for audio professionals. It is ideal for venues requiring optimized RF management, such as conference rooms, theaters, concert halls, and live events.
Other features
-
Shure SLXD4Q+ S50
-
4-Channel Receiver
-
Audio and Signal Processing
-
24-bit Digital Audio
-
Frequency Response: 20 Hz – 20 kHz
-
Dynamic Range: 118 dB
-
High-Pass Filter: 150 Hz to -12 dB/oct (off by default)
-
Total Harmonic Distortion (THD): < 0.02%
-
Configurable Audio Summing (4, 3, 2, or 1 output)
-
Connectivity and Compatibility
-
4 Balanced XLR Outputs
-
4 1/4" TRS Outputs
-
2 Network Ports
-
Compatible with Shure Wireless Workbench and ShurePlus Channels
-
Remote Setup and Control via Ethernet
-
RF and Wireless Performance
-
S50 RF Frequency Band: 823 – 832 MHz
-
Tuning bandwidth: 138 MHz
-
32 simultaneous channels per frequency band (depending on region)
-
RF cascade: 2 SLXD4Q+ can be linked for a total of 8 channels
-
RF sensitivity: -97 dBm
-
RF power: 1 mW, 10 mW
-
Interference rejection: > 85 dB typical
-
Compatibility: SLXD1, SLXD2, and SLXD3
-
Power and battery life
-
Power requirements: 15 V, 0.9 A
-
Transmitter power supply: 2 AA batteries or SB903 rechargeable battery
-
Transmitter battery life: up to 8 hours
-
Design and installation
-
Housing: Heavy-duty galvanized steel
-
Mounting: 19" rack-mountable (accessories included)
-
Antenna connectors: BNC, 50 Ω impedance, polarization 15V DC, 150 mA max.
-
Security and network management
-
256-bit AES audio encryption
-
Compatibility with third-party control systems (AMX, Crestron)
-
IP addressing: DHCP or manual
-
Firmware update via USB or network
-
Included in the box: 1 SLXD4Q+ Dante receiver, 2 quarter-wave antennas, 1 PS60 power supply, 1 Ethernet cable, rack mounting kit, user guide
-
19" rack: 1U
-
Dimensions: 42 x 393 x 152 mm
-
Weight: 1.75 kg
