Engine and Compression
The B&C Speakers DE250 16 Ohm is a 1" compression driver with a 1.7" aluminum voice coil that covers frequencies from 1 kHz to 18 kHz, designed for accurate high frequency reproduction with M6 threaded mounting inserts.
ARTICLE N° 103439
Presentation
The B&C Speakers DE250 16 Ohm is a compression driver designed to deliver clear and detailed reproduction of high frequencies. With a standard 1" (25 mm) aperture, this model incorporates a 1.7" (44 mm) voice coil made of aluminum, a material known for its lightness and excellent thermal conduction, allowing efficient heat dissipation during prolonged use.
Its polyimide membrane provides an optimal combination of rigidity and flexibility, ensuring a balanced frequency response from 1 kHz to 18 kHz. Equipped with an AES power of 120 W and a high sensitivity of 108.5 dB (1W/1m), it is capable of reproducing a powerful and faithful sound signal, thus meeting the requirements of professional sound reinforcement systems, whether fixed installations or mobile configurations.
Thanks to its mounting options, the B&C Speakers DE250 16 Ohm easily adapts to various compatible horns. It has two M6 threaded holes on a diameter of 76 mm at 180°, as well as three M6 threaded holes on a diameter of 57 mm at 120°, facilitating its integration into sound diffusion systems.
Its polyimide membrane provides an optimal combination of rigidity and flexibility, ensuring a balanced frequency response from 1 kHz to 18 kHz. Equipped with an AES power of 120 W and a high sensitivity of 108.5 dB (1W/1m), it is capable of reproducing a powerful and faithful sound signal, thus meeting the requirements of professional sound reinforcement systems, whether fixed installations or mobile configurations.
Thanks to its mounting options, the B&C Speakers DE250 16 Ohm easily adapts to various compatible horns. It has two M6 threaded holes on a diameter of 76 mm at 180°, as well as three M6 threaded holes on a diameter of 57 mm at 120°, facilitating its integration into sound diffusion systems.
Other features
-
B&C Speakers DE250 16 Ohm
-
Opening diameter: 1'' (25 mm)
-
Power 120 W AES
-
Sensitivity: 108.5 dB (1W/1m)
-
Frequency response: 1 kHz - 18 kHz
-
1.7" (44 mm) Aluminum voice coil
-
Diaphragm: Polyimide
-
Recommended cutoff frequency: 1.6 kHz
-

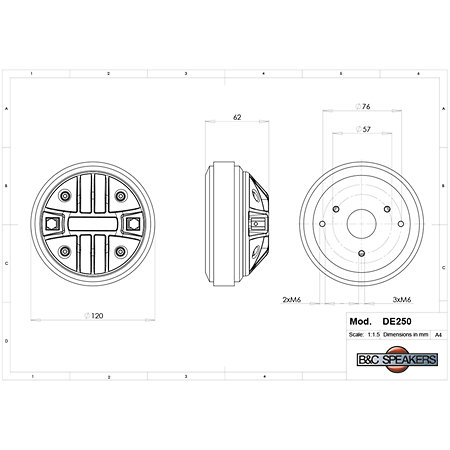

Mounting:
-
2 M6 threaded holes on Ø76 mm @ 180°
-
3 M6 threaded holes on Ø57 mm @ 120°
-
Dimensions: Ø120 x 62 mm
-
Weight: 2.15 kg
