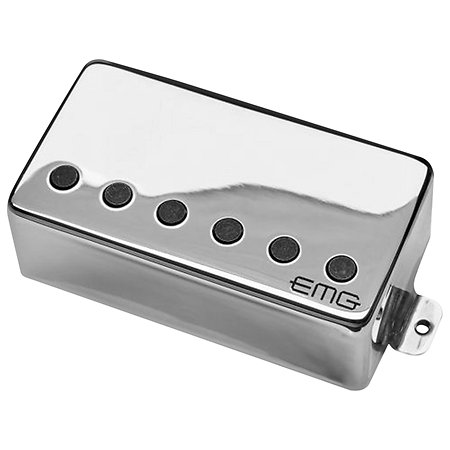

EMG - 57TW Chrome
120,83 €
excl VAT
including eco-part : 0,07 €
Out of stock
Contact us for delivery times
Guarantee 3
years
Fred
Eric
Do you need help?
Guitar Microphone
EMG's 57TW Chrome pickup turns your Strat into a stage beast thanks to its alnico and steel magnets. Triple winding, fast push/pull, stable voltage up to 27V - what more could you ask for? Its chrome casing makes a stylish statement, while its circuitry keeps a cool head. This is a pickup designed to come out clean, with no pretence.
ARTICLE N° 107942
Presentation
The EMG 57TW pickup in Chrome finish embodies a direct approach. Its push/pull function activates an incisive single mode or a wider double mode. Output voltage follows the rhythm, up to 4.5 V peak, without surge or saturation.
The heart of the microphone is based on a triple-coil construction and Alnico/steel magnets. This hybrid configuration balances attack, sustain and drive. Frequencies remain clean, even when amplified, thanks to the low noise floor.
Power consumption is 160 μA at 9V. It can climb to 27V for those looking for more scope. Autonomy reaches 1500 hours, without deterioration.
When it comes to assembly, there's nothing to solder. The kit contains everything: terminal blocks, TW connectors, 25K push-pull, springs, stereo jack and battery foam. The humbucker format fits into a 49 mm bridge with a short potentiometer body.
This model requires no adaptation. It integrates, responds and pushes straight away.
The heart of the microphone is based on a triple-coil construction and Alnico/steel magnets. This hybrid configuration balances attack, sustain and drive. Frequencies remain clean, even when amplified, thanks to the low noise floor.
Power consumption is 160 μA at 9V. It can climb to 27V for those looking for more scope. Autonomy reaches 1500 hours, without deterioration.
When it comes to assembly, there's nothing to solder. The kit contains everything: terminal blocks, TW connectors, 25K push-pull, springs, stereo jack and battery foam. The humbucker format fits into a 49 mm bridge with a short potentiometer body.
This model requires no adaptation. It integrates, responds and pushes straight away.
Other features
-
EMG 57TW Chrome
-
Series: EMG TW Series
-
Type : Dual mode microphone (humbucker / single coil)
-
Triple-coil active microphone
-
Humbucker / single selection via push-pull
-
Magnets : Alnico + steel (hybrid)
-
Single resonance frequency: 3.47 kHz
-
Double resonance frequency: 1.77 kHz
-
String output voltage: 2.00V (single)
-
String output voltage: 3.00V (double)
-
Strum output voltage: 3.00V (single)
-
Strum output voltage : 4.50V (double)
-
Output impedance : 10 kΩ
-
Noise floor : -107 dBV (60 Hz)
-
Power consumption: 160 μA at 9V
-
Maximum power supply: 27V DC
-
9V battery life: approx. 1500 hours
-
Active humbucker format
-
Thickness: 28 mm (1.1")
-
Standard EMG height: 23 mm (0.9")
-
Standard spacing (Tune-O-Matic) 49mm
-
Short shaft potentiometer (Strat) 10 mm
-
Direct mounting or with springs supplied
-
Integrated single/double coil switching
-
Volume master
-
Volume pickup
-
Tone master
-
Tone pickup
-
Terminals H1 to H6
-
Solderless assembly possible
-
1 Push-Pull potentiometer 25K (volume/tone)
-
1 output cable (15 cm)
-
2 connector cables (14 cm)
-
1 battery cable (18 cm)
-
1 TW pickup cable (38 cm)
-
1 B245 Pickup Buss
-
2 passive tone controls (25K)
-
Stereo output jack
-
Foam for 9V battery
-
Mounting springs and screws
-
Full manual with wiring diagrams
-
Length: 78.5 mm
-
Height: 28 mm
-
Depth: 38.1 mm
-
Approximate weight: 390 g (with pot and wiring)
To find out more...
The EMG 57TW Chrome microphone rises to 4.50V when strummed. This peak gives a good margin before saturation, even at extreme gain.
The stereo output opens two isolated circuits or an active/passive split. You can adapt according to stage, reamping or DI. H1 to H6 terminals simplify set-ups with several microphones.
Each connection finds its place without soldering or doubt. At 28 mm deep, you'll need to adjust the cavity on a domed table.
On a Les Paul, it's best to measure before drilling. This active format requires well thought-out routing.
The stereo output opens two isolated circuits or an active/passive split. You can adapt according to stage, reamping or DI. H1 to H6 terminals simplify set-ups with several microphones.
Each connection finds its place without soldering or doubt. At 28 mm deep, you'll need to adjust the cavity on a domed table.
On a Les Paul, it's best to measure before drilling. This active format requires well thought-out routing.
