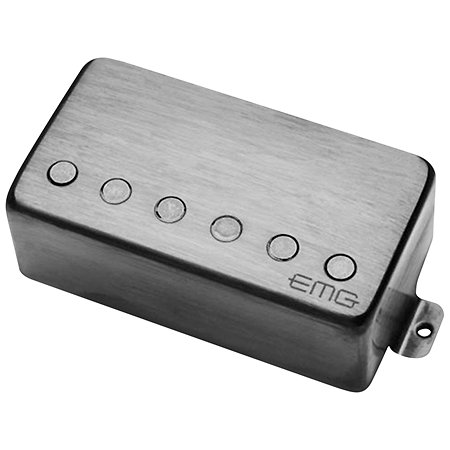

EMG - 57TW Floyd Brushed Black Chrome
120,83 €
excl VAT
including eco-part : 0,07 €
Out of stock
Contact us for delivery times
Guarantee 3
years
Fred
Eric
Do you need help?
Guitar Microphone
EMG's 57TW Floyd Brushed Black Chrome is a microphone that changes mode with a simple gesture. The on-board push/pull switches between single and double coils. Hybrid magnets create a tense sonic terrain. Active format, long axis, Floyd spacing: everything converges towards clear integration.
ARTICLE N° 107944
Presentation
The EMG 57TW Floyd Brushed Black Chrome pickup explores two textures without weighing down the assembly, thanks to its alnico and steel magnets. Triple active winding, integrated push/pull, stable voltage: every parameter has its place. The single coil climbs to 3.47 kHz, the double coil settles at 1.77 kHz.
The power supply accepts up to 27V, without excessive consumption. The output level rises to 4.5 V under attack, and remains clean under 60 Hz. The case remains compact, with a standard EMG height.
The 52 mm spacing and 19 mm axis are targeted at Floyd Rose and Les Paul configurations. It can be mounted directly or via springs, depending on body constraints.
All connectors, cables, pots and screws are supplied. The instructions guide you through assembly without soldering or guesswork. This model offers real sonic flexibility, with no unnecessary detours. Its brushed Black Chrome colour extends this approach: sober, clean and precise.
The power supply accepts up to 27V, without excessive consumption. The output level rises to 4.5 V under attack, and remains clean under 60 Hz. The case remains compact, with a standard EMG height.
The 52 mm spacing and 19 mm axis are targeted at Floyd Rose and Les Paul configurations. It can be mounted directly or via springs, depending on body constraints.
All connectors, cables, pots and screws are supplied. The instructions guide you through assembly without soldering or guesswork. This model offers real sonic flexibility, with no unnecessary detours. Its brushed Black Chrome colour extends this approach: sober, clean and precise.
Other features
-
EMG 57TW Floyd Brushed Black Chrome
-
Series: EMG TW Series
-
Type : Dual mode microphone (humbucker / single coil)
-
Triple-coil active pickup
-
Trem spacing (Floyd/Fender) 52 mm
-
Long shaft potentiometer (Les Paul) 19 mm
-
Humbucker/single-coil selection via push-pull
-
Magnets : Alnico + steel (hybrid)
-
Single resonance frequency: 3.47 kHz
-
Double resonance frequency: 1.77 kHz
-
String output voltage: 2.00V (single)
-
String output voltage: 3.00V (double)
-
Strum output voltage: 3.00V (single)
-
Strum output voltage : 4.50V (double)
-
Output impedance : 10 kΩ
-
Noise floor : -107 dBV (60 Hz)
-
Power consumption: 160 μA at 9V
-
Maximum power supply: 27V DC
-
9V battery life: approx. 1500 hours
-
Active humbucker format
-
Thickness: 28 mm (1.1")
-
Standard EMG height: 23 mm (0.9")
-
Direct mounting or with springs supplied
-
Integrated single/double coil switching
-
Volume master
-
Volume pickup
-
Tone master
-
Tone pickup
-
Terminals H1 to H6
-
Solderless assembly possible
-
1 Push-Pull potentiometer 25K (volume/tone)
-
1 output cable (15 cm)
-
2 connector cables (14 cm)
-
1 battery cable (18 cm)
-
1 TW pickup cable (38 cm)
-
1 B245 Pickup Buss
-
2 passive tone controls (25K)
-
Stereo output jack
-
Foam for 9V battery
-
Mounting springs and screws
-
Full manual with wiring diagrams
-
Length: 78.5 mm
-
Height: 28 mm
-
Depth: 38.1 mm
-
Approximate weight: 390 g (with pot and wiring)
To find out more...
Isolating each winding of EMG's 57TW micro creates completely new configurations. This model reacts differently depending on its mounting. On rings, it gains in projection, especially on Floyd guitar. Direct to body, the sound is denser and warmer.
The copper logo on the brushed black chrome changes subtly. Over time, it softens without disappearing. The contrast becomes finer and more pleasing to the eye.
Voltage variations influence the effects chain. Compressors and boosts react differently in single or double mode. This flexibility opens up a host of creative options.
The copper logo on the brushed black chrome changes subtly. Over time, it softens without disappearing. The contrast becomes finer and more pleasing to the eye.
Voltage variations influence the effects chain. Compressors and boosts react differently in single or double mode. This flexibility opens up a host of creative options.
