Electric Guitar Effects

Crank 2 controller loop effects for guitar or bass, to manage two channels of combined upstream effects pedals. Circuit 100% Class A! As with all Radial products, the circuit of Loopbone was designed to prevent loss of signal (Class-A Buffer, Drag Control, Pop-free switching).

ARTICLE N° 54568
  • Radial Engineering Loopbone
  • pedal effects loop controller (2 loops)
  • Series ToneBone
  • Two separate effects loops audio Circuit Class A for better sound
  • silent switching through optocouplers
  • Vari-Boost, Booster Class
  • separate output for tuner
  • Drag: impedance corrector
  • Circuit Class A
  • input impedance 1M Ohm
  • output impedance 10K ohms
  • boost level 15 dB max
  • Dimensions : 175 x 108 x 54 mm
  • Weight: 1.06kg
The Loopbone is an effect loop controller which has two effects loops.

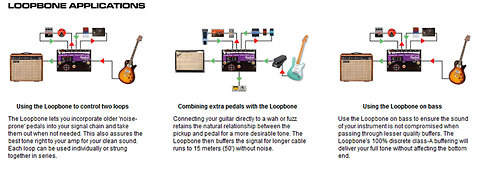

These can be used separately or in series, allowing the guitarist to add effects when needed and remove the signal to reduce noise.
To preserve the natural sound of the instrument, the Loopbone is built around a circuit 100% Class A with integrated impedance Drag checker.
