Sennheiser - EW-DX SKM U1/5
New
390,83 €
excl VAT
Out of stock
Contact us for delivery times
Guarantee 2
years
Jessie
Louis
Do you need help?
Wireless Microphone
Sennheiser EW-DX SKM (U1/5), digital wireless transmitter covering the 823.2 - 831.8 MHz and 863.2 - 864.8 MHz frequency bands, which can be used without a licence in Europe.
ARTICLE N° 120869
Presentation
The EW-DX SKM U1/5 operates in the 823.2 - 831.8 MHz and 863.2 - 864.8 MHz bands, which are generally licence-free in Europe. This makes it an ideal solution for quick and easy use.
This version is particularly suited to users who want to avoid administrative constraints.
This version is particularly suited to users who want to avoid administrative constraints.
Other features
-
Sennheiser EW-DX SKM (U1/5)
-
Manufacturer reference: 509433
-
Transmission & RF :
-
Type : digital wireless handheld transmitter
-
Series : EW-DX (Evolution Wireless Digital)
-

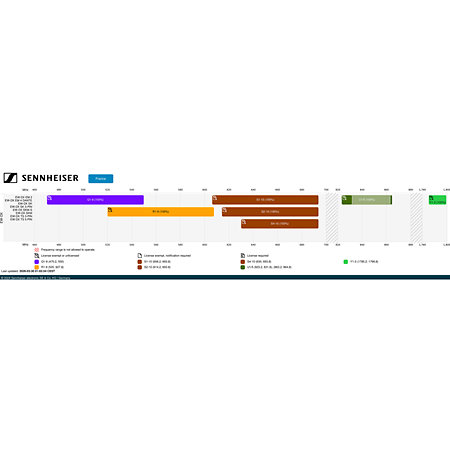

Frequency bands: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz (U1/5)
-
Channel width: 200 kHz
-
RF power: 10 mW ERP (up to 12 mW depending on range)
-
Range: up to 100 m
-
Transmission: proprietary digital
-
Codec: SePAC (Sennheiser Performance Audio Codec)
-
International use (depending on local RF regulations)
-
Audio :
-
Frequency response: 20 Hz - 20 kHz (-3 dB)
-
Dynamic range: 134 dB
-
Latency: 1.9 ms
-
Distortion (THD): ≤ -60 dB (1 kHz @ -3 dBFS)
-
Digital audio processing with no perceptible compression
-
Audio level control (digital trim)
-
Built-in test tone generator
-
Directionality: depends on optional capsule selected (cardioid, omni)
-
Advanced features :
-
Switchable low-cut filter: Off / 30 / 60 / 80 / 100 / 120 Hz
-
Configurable LED (on/off)
-
Control lock
-
Direct control from transmitter
-
Permanent display via E-Ink screen
-
Settings visible even when powered down (without batteries)
-
Connectivity & control :
-
Link: wireless (digital RF)
-
Bluetooth: 2402 - 2480 MHz
-
EW-DX ecosystem compatible
-
Network management via Sennheiser solutions (Control Cockpit)
-
Synchronisation with EW-DX receiver
-
Power supply & autonomy :
-
Power supply: 2 AA 1.5 V batteries or BA 70 rechargeable battery (optional)
-
Operating time: up to 12 hours (with optional BA 70 battery)
-
Battery capacity: 2.3 Ah
-
Supply voltage: 2.0 - 4.35 V
-
Charging current: < 300 mA
-
Recharging: integrated contacts
-
Compatible chargers: CHG 70N, L 70 USB, L 6000 (LM 6070 module)
-
Construction & ergonomics :
-
Housing: robust metal
-
Format: handheld microphone
-
User interface with function buttons
-
Designed for intensive use (live / broadcast)
-
Mute switch: no
-
Operating conditions :
-
Operating temperature : -10 °C to +55 °C
-
Relative humidity: 5 - 95% (non-condensing)
-
Dimensions (without capsule): 40 × 200 mm
-
Weight: 304 g
-
Box contents :
-
1 EW-DX SKM hand-held transmitter
-
1 MZQ 1 microphone clip
-
2 AA batteries
-
User documentation
