Streaming equipment

Extend your HDMI sources over 100 m without loss: the MuxLab 500456 kit manages it all with one hand. It carries 4K, audio and even RS232/IR controls over a single network cable. It's the tried-and-tested solution for your home cinema installations or conference rooms - true plug and play!

ARTICLE N° 115702
If you're tired of juggling converters and HDMI extenders that fail after ten metres, the MuxLab 500456 HDMI 4 extender kit is the antidote. This transmitter/receiver duo works like a magic tunnel for your signal. It powers ultra-net 4K video, digital sound and all your controls over the crazy distance of 100 metres. A single Cat 6 cable does the job. It's that simple!

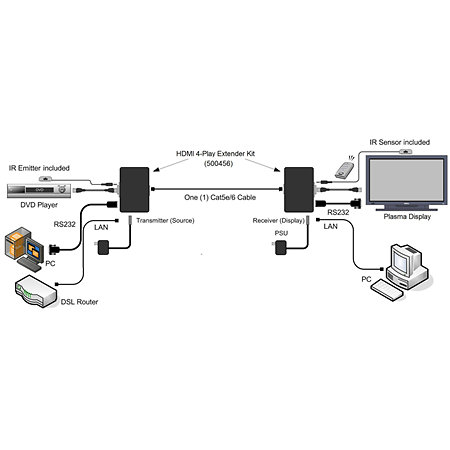

Let's get down to business. Are you installing a projector on the ceiling of a training room? The transmitter hides next to your Blu-ray player or PC. The receiver attaches discreetly to the projector. Between the two, a single network cable runs down the trunking. No more headaches with arm-thick HDMI cables of limited length. HDBaseT technology is the secret: it guarantees an uncompressed signal, so an absolutely faithful image, whether you're showing a 1080p Deep Color film or a 4K presentation.

But MuxLab doesn't stop at the image. It's a true control system. Bi-directional IR and RS232 channels mean you can control the player from the room, or integrate it into a Crestron or AMX home automation system. The LAN port opens up further network management possibilities.

Robust, compact at just 11 cm long, and cool in operation, this kit is the preferred tool of AV integrators for high-end residential projects and corporate installations. It speaks the same language as the other MuxLab extenders, for worry-free scalability. Supplied with power supplies, it's up and running in minutes. Your clean, reliable installation starts here.
Digital input
 HDMI
Number of inputs
 1
Weight
 600 g
Power supply
 Power adapter (included)
Packaging
 Pair
Accessories included
 Phantom power adapter
Input channels
 1
  • MuxLab 500456 HDMI 4 Extension Kit
  • HDBaseT 4-Play series
  • HDMI extender category
  • TX RX kit type
  • Uncompressed HDMI signal
  • Resolution 1080p Deep Color
  • Resolution 4K 30fps
  • 3D resolution supported
  • Distance 100 m
  • Cat 5e 6 cable
  • Single link cable
  • HDBaseT compatible
  • HDCP compatible
  • HDMI RJ45 RS232 IR inputs
  • HDMI RJ45 RS232 IR outputs
  • Integrated LAN port
  • Bi-directional IR
  • Bi-directional RS232
  • Digital audio supported
  • MuxLab extenders compatible
  • Pro residential use
  • Corporate AV use
  • .
  • Accessories included
  • External power supply
  • .
  • Dimensions :
  • Length 112 mm
  • Height 25 mm
  • Width 76 mm
  • Weight 600 g

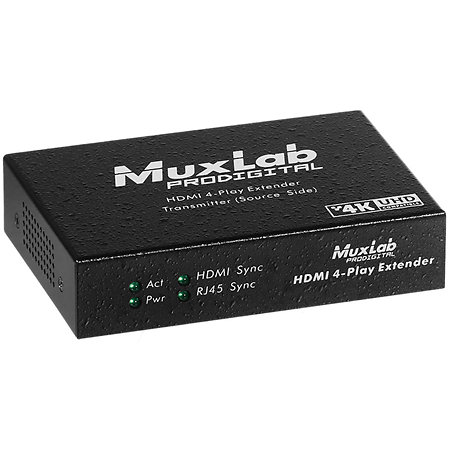

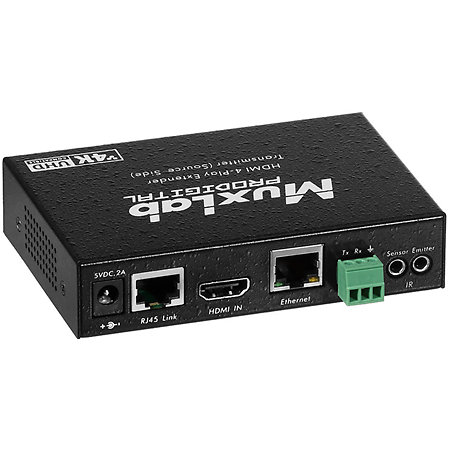

MuxLab - 500456 Kit Extension HDMI 4
MuxLab - 500456 Kit Extension HDMI 4
630,83 € excl VAT
including eco-part : 0,07 €
Out of stock
Contact us for delivery times
Guarantee 3  years
