The Sennheiser EW-D 835-S SET (U1/5) digital wireless microphone system makes vocal performances easier thanks to simplified set-up and remote management via the EW-D Smart Assist app. Its automatic frequency scanning helps to establish a reliable connection. With a battery life of up to 8 hours on the supplied AA batteries, or 12 hours with the compatible rechargeable battery sold separately, it is suitable for a range of usage times.
ARTICLE N° 128326
Sennheiser - EW-D 835-S SET (U1/5)
Sennheiser - EW-D 835-S SET (U1/5)
499,17 €
excl VAT
In Stock
Usually ships within 3 days
+infos
Guarantee 3
years
Louis
Do you need help?
Presentation

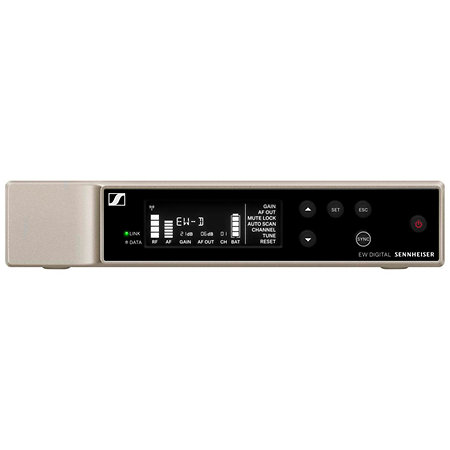

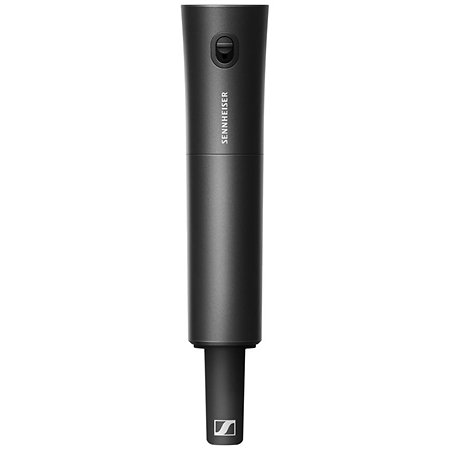

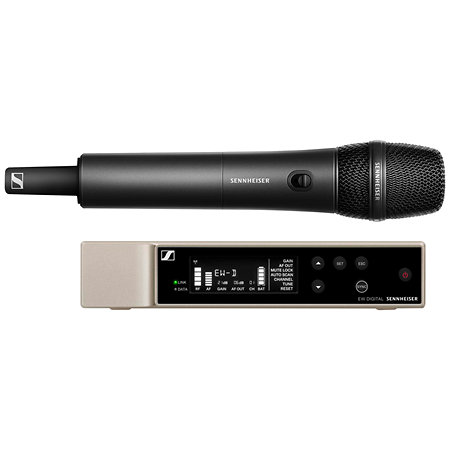

Whether for singing, speaking or providing sound for performances, the Sennheiser EW-D 835-S SET (U1/5) digital wireless microphone system combines a handheld transmitter fitted with the e 835 capsule with an EW-D EM rack-mounted receiver. Its built-in mute button allows the microphone to be muted quickly, whilst the EW-D Smart Assist app simplifies setup and remote management via Bluetooth Low Energy.
The UHF digital transmission operates across two frequency bands: 823.2 to 831.8 MHz and 863.2 to 864.8 MHz. Automatic scanning makes it easy to find suitable frequencies. Its 134 dB audio input dynamic range helps preserve signal detail without the need for sensitivity adjustment. The 56 MHz tuning bandwidth and 600 kHz channel spacing allow for up to 90 channels, depending on the configuration.
The kit also includes two whip antennas, a power supply with mains adaptors and a rack-mounting kit. Two AA batteries are supplied, providing up to eight hours’ battery life. To extend operating time, the BA 70 rechargeable battery, sold separately, provides up to twelve hours’ use. Before each performance, check the available frequencies and the condition of the batteries to ensure your equipment is set up correctly.
The UHF digital transmission operates across two frequency bands: 823.2 to 831.8 MHz and 863.2 to 864.8 MHz. Automatic scanning makes it easy to find suitable frequencies. Its 134 dB audio input dynamic range helps preserve signal detail without the need for sensitivity adjustment. The 56 MHz tuning bandwidth and 600 kHz channel spacing allow for up to 90 channels, depending on the configuration.
The kit also includes two whip antennas, a power supply with mains adaptors and a rack-mounting kit. Two AA batteries are supplied, providing up to eight hours’ battery life. To extend operating time, the BA 70 rechargeable battery, sold separately, provides up to twelve hours’ use. Before each performance, check the available frequencies and the condition of the batteries to ensure your equipment is set up correctly.
Other features
-
Sennheiser EW-D 835-S SET (U1/5)
-
Digital wireless microphone system
-
Kit contents: EW-D EM rack-mount receiver, EW-D SKM-S handheld transmitter, MMD 835 microphone capsule, MZQ 1 microphone clip, two rod antennas, NT 12-5 CW power supply with mains adaptors, GA 3 rack-mounting kit, four rubber feet and guides supplied.
-
Transmission technology: Digital UHF
-
Radio frequency range: 823.2–831.8 MHz and 863.2–864.8 MHz
-
Transducer type: Dynamic
-
Polar pattern: Cardioid
-
Sensitivity: 2.1 mV/Pa
-
Sound pressure level (SPL): 154 dB
-
Audio frequency response: 20 Hz to 20 kHz (-3 dB) at 3 dBFS
-
Total harmonic distortion (THD): ≤ -60 dB at 1 kHz for an input level of -3 dBFS
-
Audio input dynamic range: 134 dB
-
Latency: 1.9 ms
-
Configuration app: EW-D Smart Assist
-
App connectivity: Bluetooth Low Energy (BLE)
-
Bluetooth frequency range: 2,402 to 2,480 MHz
-
Frequency search: Automatic scan (Auto Scan)
-
Number of selectable frequencies: 2,240
-
Tuning bandwidth: 56 MHz
-
Channel spacing: 600 kHz
-
Number of channels: Up to 90, depending on conditions and configuration.
-
Transmitter power supply: 2 x 1.5 V AA batteries or a compatible BA 70 rechargeable battery.
-
Claimed battery life: Up to 8 hours with the two AA batteries supplied or up to 12 hours with the lithium-ion battery sold separately.
-
Audio transmission power: 10 mW ERP; 12 mW ERP for the Y1-3 band, in accordance with the range’s general specifications.
-
Bluetooth transmission power: 10 mW EIRP maximum.
-
Maximum audio output level: 18 dBu.
-
Receiver power supply: 11 to 13 V DC.
-
Specified power consumption: ≤ 300 mA.
-
Operating temperature: -10 °C to +55 °C.
-
Operating relative humidity: 5 to 95 per cent, non-condensing.
-
Dimensions of the EW-D EM receiver: 212 x 44 x 189 mm.
-
Dimensions of the packaged kit: 405 x 350 x 73 mm.
-
Weight of the packaged kit: 3.1 kg.
To find out more...
Before purchasing, check that the U1/5 frequency bands are permitted in your country and are compatible with other wireless equipment used on site.
For extended use, make sure you have spare AA batteries or the compatible BA 70 rechargeable battery (sold separately) to enjoy up to 12 hours’ battery life with this battery.
For extended use, make sure you have spare AA batteries or the compatible BA 70 rechargeable battery (sold separately) to enjoy up to 12 hours’ battery life with this battery.
