Tascam - Adaptateur XLR/MIC Tascam pour Camera Fujifilm

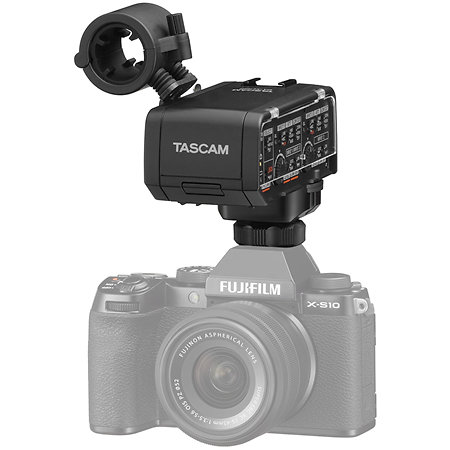

The Tascam CA-XLR2d-F is an audio adapter designed for Fujifilm cameras, allowing you to record professional audio directly via the accessory shoe. It offers two XLR/6.35mm combo inputs, a 3.5mm mini-jack input, and advanced audio processing for optimum sound quality without additional conversion.
Presentation
With two XLR/6.35 mm TRS combo inputs and a 3.5 mm mini-jack input, it supports a wide variety of microphones: condenser, dynamic, shotgun or lavalier. It is ideal for filmmakers, journalists and content creators looking to improve their sound quality without adding complex post-production steps.
The audio signal is transmitted entirely digitally via the accessory shoe of compatible cameras, eliminating the loss and interference caused by external cables.
Native integration with Fujifilm cameras ensures smooth operation without complicated settings. In addition, the CA-XLR2d-F is powered directly from the camera via the hot shoe, eliminating the need for additional batteries and providing a compact and efficient solution.
The built-in preamplifier by Tascam ensures clean and detailed amplification of the audio signal, with low noise and a wide dynamic range. Several audio processing options are integrated, including a limiter, a low-cut filter and an automatic level adjustment, allowing you to record optimal sound whatever the conditions. The headphone output allows real-time monitoring for precise monitoring during recording.
Finally, the CA-XLR2d-F has a passive shoe on the top, allowing you to attach accessories such as a shotgun microphone or an RF transmitter. Its robust and lightweight housing ensures a comfortable grip and great durability, even under intensive use. With this adapter, Tascam provides videographers with a powerful tool for capturing professional sound without complications.
Features
Other features
-
Tascam CA-XLR2D-F
-
Tascam XLR/MIC adapter for Fujifilm Camera
-
Audio interface for Fujifilm cameras via active accessory shoe
-

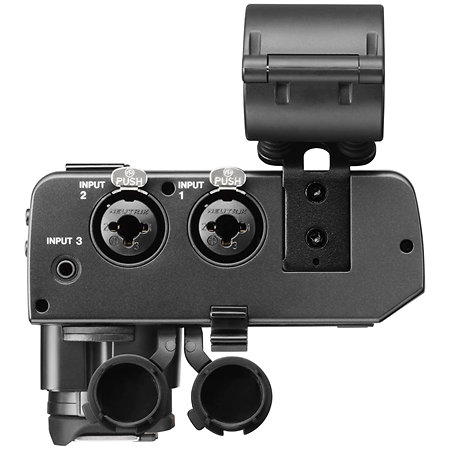

Two XLR/6.35 mm TRS combo inputs with 48V phantom power
-
One 3.5 mm mini-jack input for lavalier microphone or other audio source
-
3.5 mm mini-jack headphone output for real-time monitoring
-
Direct digital audio transmission to the camera without additional conversion
-
High-quality Tascam preamps with low noise and wide dynamic range
-
Built-in processing: limiter, low-cut filter, automatic level adjustment
-
Direct power supply from the camera via the accessory shoe, no battery required
-
Robust and compact housing, designed for use in intensive filming
-

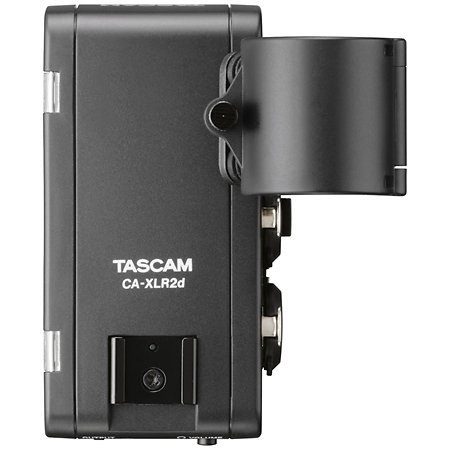

Passive shoe on the top for attaching additional accessories
-
Technical specifications:
-
Sampling frequencies: 48 kHz / 96 kHz
-
Digital resolution: 16 bits, 24 bits
-
XLR input impedance: ≥2 kΩ
-
Maximum XLR input level: +6 dBu
-
Gain amplitude: 66 dB
-
Phantom power: +48V switchable
-
Headphone/camera output: 3.5 mm stereo mini-jack
-
Supplied items: CA-XLR2d adapter, battery case, microphone mount, 3.5 mm mini-jack cable, user guide
-
Dimensions: 88 mm × 119 mm × 110 mm
-
Weight: 331 g
-
Camera not supplied
