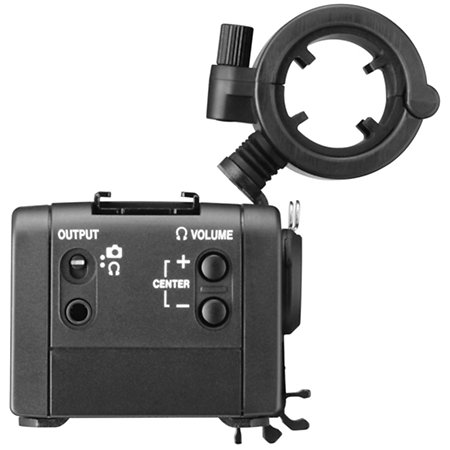

Tascam - Adaptateur XLR/MIC Tascam pour Camera Nikon
The Tascam CA-XLR2d-N allows you to connect professional microphones to a Nikon mirrorless camera to capture high-quality stereo audio that is synchronised directly with the video. With its two XLR/jack combo inputs, high-performance preamps and built-in processing, it offers a comprehensive solution for video shoots, interviews, documentaries and audiovisual productions.
Presentation
Thanks to its digital audio transmission via the Nikon hot shoe, the signal is sent directly to the camera without any additional conversion, thereby minimising noise, distortion and post-production steps. The system also eliminates the need for manual resynchronisation between audio and video.
The CA-XLR2d-N features two XLR/6.35 mm TRS jack combo inputs that accept both microphone and line-level signals, as well as a 3.5 mm stereo mini-jack input compatible with lavalier microphones or other sources requiring plug-in power. The Tascam preamps incorporate switchable 48 V phantom power, a three-level attenuation control, a low-cut filter, a limiter and an Auto-Level function to ensure a stable recording level.
Its passive hot shoe on top also allows various accessories, such as a microphone, an RF receiver or a transmitter, to be attached without transmitting unwanted vibrations. It can be adapted to suit both mobile filming set-ups and more advanced installations thanks to its Camera and Headphone modes, its control cover and its battery or Nikon hot-shoe power supply.
Features
Other features
-
Tascam CA-XLR2D-N
-
Tascam XLR/MIC adapter for Nikon cameras
-
Audio interface for Fujifilm cameras via active accessory shoe
-
Two XLR/6.35 mm TRS jack combo inputs with 48V phantom power
-
One 3.5 mm mini-jack input for a lavalier microphone or other audio source
-
3.5 mm mini-jack headphone output for real-time monitoring
-
Direct digital audio transmission to the camera without additional conversion
-
High-quality Tascam preamps with low noise and wide dynamic range
-
Built-in processing: limiter, low-cut filter, automatic level control
-
Powered directly by the camera via the accessory shoe; no battery required
-
Robust and compact housing, designed for intensive on-set use
-
Passive hot shoe on top for attaching additional accessories
-
Technical specifications:
-
Sampling rates: 48 kHz / 96 kHz
-
Digital resolution: 16-bit, 24-bit
-
XLR input impedance: ≥2 kΩ
-
Maximum XLR input level: +6 dBu
-
Gain range: 66 dB
-
Phantom power: +48V switchable
-
Headphone/camera output: 3.5 mm stereo mini-jack
-
Included items: AC-XLR2d adapter, battery pack, microphone mount, 3.5 mm mini-jack cable, user guide
-
Dimensions: 88 mm × 119 mm × 110 mm
-
Weight: 341 g
-
Camera not included
