Prism Lyra 2 Black. The reference compact digital audio interface, the ultimate in terms of conversion and on-board mic preamps. For professionals who don't want to compromise on the digital audio quality of their system.
ARTICLE N° 92344
Presentation
Lyra represents the ultimate in compact audio interfaces. Packing Prism Sounds Reliable, no-compromise AD/DA conversion in a compact chassis perfect for use in the studio or on the road.
Based on the Orpheus audio path and clocking circuitry, Lyra is ideal for those who don't need a lot of I/O, but demand the highest quality and most transparent AD/DA available.
Based on the Orpheus audio path and clocking circuitry, Lyra is ideal for those who don't need a lot of I/O, but demand the highest quality and most transparent AD/DA available.
Other features
-
Prism Sound Lyra 2
-
Converter :
-
Dynamic range: >138dB (0.000013%, -60dBFS)
-
THD+N: <-137dB (0.000014%, -0.1dBFS)
-
System sampling rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz
-
Local clock accuracy: ±50 ppm
-
Jitter rejection: > 60 dB / decade above 100 Hz
-
Internal mixer delay (total analogue input/output) :
-
fs = 44.1 kHz : 0.57 ms ;
-
fs = 48 kHz : 0.52 ms ;
-
fs = 88.2 kHz : 0.2 ms ;
-
fs = 96 kHz : 0.18 ms ;
-
fs = 176.4 kHz : 0.09 ms ;
-
fs = 192 kHz : 0.08 ms ;
-
Analogue line input characteristics :
-
Electronically balanced, with fully balanced analogue signal path
-
Switchable input sensitivity +4dBu (0dBFS = +18dBu) or -10dBV (0dBFS = +6dBu)
-
Input impedance: 14.5kΩ
-
Total harmonic distortion -117dB (0.00014%, -0.1dBFS)
-
THD+N: -111dB (0.00028%, -0.1dBFS)
-
Dynamic range: 116dB (-60dBFS)
-
Overkiller: progressive limiter, self-aligning, selectable per channel
-
MS matrix: allows direct connection of centre microphones or non-matrix mic preamps
-

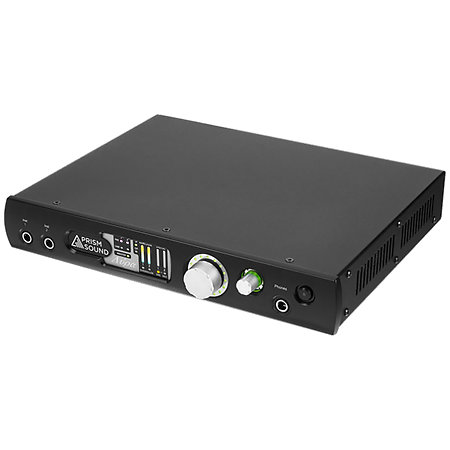

Front panel :
-
Instrument inputs :
-
2x 6.3 mm TS jacks
-
Automatic selection of analogue inputs 1 and 2 once connected
-
Software displacement
-
Headphone output :
-
1x 6.3 mm TRS jack
-
Illuminated volume control
-
Master volume :
-
Encoder / Assignable push-button switch
-
Halo indication
-
Standby button :
-
With standby indicator (also flashes in "identification" mode)
-
Indicators :
-
Level indicators :
-
4x multi-segment and multi-coloured bar graphs
-
Overload indication
-
2 for analogue, 2 for digital
-
Assignable to inputs or outputs
-
Switchable analogue outputs 1/2 or 3/4
-
Input selection :
-
Indicates analogue input mode (mic/line/inst)
-
Phantom power indicator for mic mode
-
Overkiller :
-
For analogue inputs
-
Lit when Overkiller limiters are active
-
Digital input :
-
Indicators for unlocked digital input
-
SRC (Sample Rate Converter) selected
-
Digital Output :
-
Indicator for SRC (sample rate converter) selected
-
Synchronisation :
-
Main indicator, lit when the interface is in local synchronisation
-

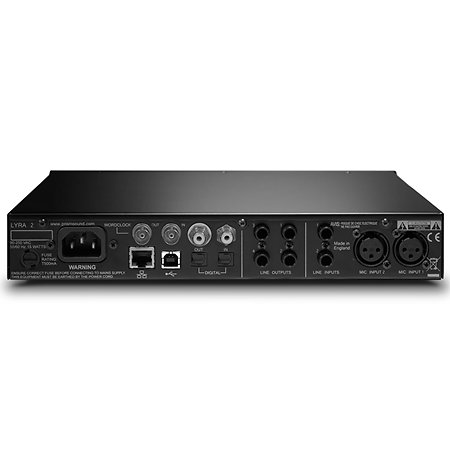

Rear panel :
-
Mic inputs: 2 XLR sockets
-
Line inputs: 2 x 6.3 mm TRS sockets (balanced or unbalanced)
-
Line outputs 1-4: 4 x 6.3 mm TRS sockets (balanced or unbalanced)
-
Digital inputs: 1x RCA + 1x TOSLINK for S/PDIF or ADAT optical input (RCA can function as an AES3 input with an XLR-RCA adapter)
-
Digital Output: 1x RCA + 1x TOSLINK for S/PDIF or ADAT optical output (RCA can function as AES3 output with XLR-RCA adaptor)
-
Wordclock: 2x BNC sockets, output and input (75Ω)
-
USB port: 1x USB type B socket
-
Mains supply: IEC 6A 3-pin input
-
Compatibility :
-
OS X 10.5 or later on Intel silicon and Apple M1
-
Windows Vista, 7, 8, 10 and 11 (ASIO and WDM drivers)
-
Internal power supply 90-250VAC, 50-60Hz, IEC 6A connector
-
Power consumption: 15W
-
Fuse rating: 0.5A(T), 20mm, glass
-
Ambient operating conditions: 0 to 35°C, 85% maximum relative humidity
-
Dimensions (including feet): W: 285 mm D: 242 mm H: 50 mm
-
Weight: 2.1kg
-
Form factor: 2/3 width, 1U 19" rack mountable (optional rack ears available)
-
Supplied with IEC power cord and USB type A to B cable
