Guitar Microphone

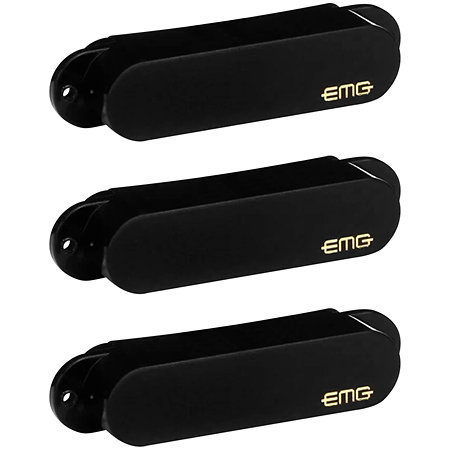

With its Alnico V magnets, the EMG SA Set Black is a set of 3 microphones that boosts dynamic response. Less noise, more clarity. It boosts your harmonics and preserves sustain, even over long sessions. Active electronics turn every note into reliable data.
ARTICLE N° 107854
Presentation
The EMG SA Set Black pickups are based on a well thought-out active architecture. Three simple windings coexist, each powered by an Alnico V magnet. Together, they generate a precise, constant and interference-free output voltage. It's a sound base that's controlled, but not cold.
This set raises the harmonics. It pushes the frequency response towards 3.70 kHz, while keeping the noise level below -100 dB. The on-board preamp stabilises the signal and enhances the response without artificially inflating the timbre. It doesn't colour, it reveals.
Its silent operation keeps the subtleties of the playing intact. Sustain is enhanced, even when the pick-ups brush against the strings. No shielding is needed. There are no shocks. Just clean impulses, calibrated for faithful reproduction.
The solderless system, complete with cables, jack, selector and 25K pots, reduces friction during installation. It integrates with most Strat systems. Active tones are sent via the send/return circuit. Passive tones remain accessible.
At 240 µA power consumption, this model provides almost 1000 hours of autonomy from a 9V battery. Every parameter has been validated to last, and every detail optimises your consistency.
This set raises the harmonics. It pushes the frequency response towards 3.70 kHz, while keeping the noise level below -100 dB. The on-board preamp stabilises the signal and enhances the response without artificially inflating the timbre. It doesn't colour, it reveals.
Its silent operation keeps the subtleties of the playing intact. Sustain is enhanced, even when the pick-ups brush against the strings. No shielding is needed. There are no shocks. Just clean impulses, calibrated for faithful reproduction.
The solderless system, complete with cables, jack, selector and 25K pots, reduces friction during installation. It integrates with most Strat systems. Active tones are sent via the send/return circuit. Passive tones remain accessible.
At 240 µA power consumption, this model provides almost 1000 hours of autonomy from a 9V battery. Every parameter has been validated to last, and every detail optimises your consistency.
Other features
-
EMG SA Set Black
-
EMG SA Series
-
3 active single-coil microphones, Alnico V
-
Clear, warm and dynamic sound
-
Frequency response rich in harmonics
-
Higher output than passive
-
Very low built-in background noise
-
Integrated low impedance preamp
-
Virtually silent operation with no loss of tone
-
Balanced bar magnets for wide bends
-
Improved sustain for greater expressivity
-
Ideal for blues, rock and funk
-
Inspired by vintage Stratocaster sounds
-
Used by Gilmour, Lukather, Carlton
-
Solderless system
-
1 x 25K volume pot
-
2 25K tone potentiometers
-
1 B161 5-position selector (X4)
-
3 EMG SA microphones
-
1 stereo jack output
-
3 microphone cables
-
3 connection cables
-
1 output cable
-
1 battery cable
-
3 pairs of screws and springs
-
Standard spacing (Tune-O-Matic) 49mm
-
Short shaft potentiometer (Strat) 10 mm
-
Switch B161(X4) (Switch Buss)
-
Pickup connections: neck, middle, bridge
-
Bypass terminal block with removable jumpers
-
Sends/returns for active controls
-
VLPF, SPC, EXG, RPC compatible
-
9V power supply for EMG accessories
-
Audio output with battery cut-off via jack
-
Passive tones via send only
-
Active tones via send/return
-
Serial controls: volume, tone, effect
-
Totally solderless system except for long jack
-
Magnet type : Alnico V
-
Resonant frequency: 3.70 kHz
-
String output voltage: 1.00 V
-
Chord output voltage: 3.00 V
-
Output impedance: 10 kΩ
-
Noise floor (60Hz) : -101 dB
-
Current consumption : 240 µA (9V)
-
Battery life : ~1000 hours
-
Max supported voltage : 27V DC
-
Stereo connector: included (12B jack)
-
Do not connect to bridge ground
-
No electric shock via strings
-
No external shielding required
-
Compatible with older EMG microphones
-
All EMG accessories compatible
-
No effect on sustain if close to strings
-
Length: 83.31 mm
-
Width: 17.78 mm
-
Height: 19.56 mm
-
Total kit weight: 390 g
To find out more...
The harmonic richness of this model enhances the shimmer effects. Each note floats in space without becoming blurred.
With a raw cavity, the audio breathes more. The aluminium shielding tightens the treble slightly, making it tighter.
The preamp remains consistent, whatever the signal received. The impedance of the pedalboard or amp does not distort it.
The stereo jack cuts the power supply as soon as you unplug. No more forgetting or fiddling around when you're playing live. Everything becomes simple and automatic.
No unexpected saturation, even with stacked effects. This allows you to push textures even further.
With a raw cavity, the audio breathes more. The aluminium shielding tightens the treble slightly, making it tighter.
The preamp remains consistent, whatever the signal received. The impedance of the pedalboard or amp does not distort it.
The stereo jack cuts the power supply as soon as you unplug. No more forgetting or fiddling around when you're playing live. Everything becomes simple and automatic.
No unexpected saturation, even with stacked effects. This allows you to push textures even further.
