EMG - 57/66 TW Set Brushed Chrome
233,33 €
excl VAT
including eco-part : 0,07 €
Out of stock
Contact us for delivery times
Guarantee 3
years
Fred
Eric
Do you need help?
Guitar Microphone

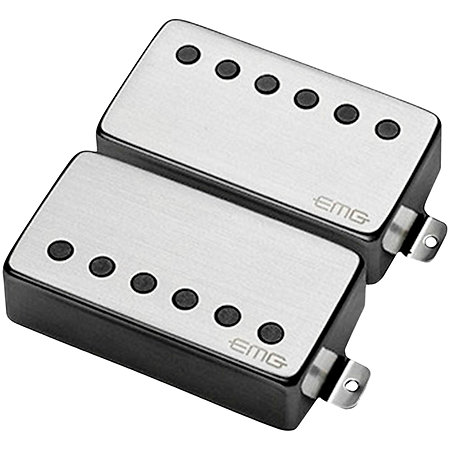

From EMG's TW series, this duo of 57/66 TW Brushed Chrome pickups combines vintage grain with an active format. The 57TW features Alnico and steel, while the 66TW mixes ceramic and Alnico. The push-pull changes character with a click. Quick set-up, long battery life, low noise: ready for stage or studio!
ARTICLE N° 107884
Presentation
The set of EMG 57/66 TW pickups in Brushed Chrome is for those looking for something more substantial. Each pickup has a dual mode: clear and open on single, tighter on double. The three-coil architecture adds harmonic detail.
The push-pull system is directly integrated into the potentiometers. There are no external selectors to add. The output impedance, set at 10 kΩ, balances power and clarity. Voltages can be as high as 4.5 V when playing rhythmically.
Current consumption remains low (160 μA), and the 9V battery lasts for over 1,500 hours. No soldering is required for wiring. Two lengths of TW cable are included, along with everything needed for complete assembly.
This model fits on a 49 mm Tune-O-Matic spacer. The short (10 mm) potentiometer is well suited to slim-top models. A configuration that's ready to handle busy sounds without ever overloading the electronics.
The push-pull system is directly integrated into the potentiometers. There are no external selectors to add. The output impedance, set at 10 kΩ, balances power and clarity. Voltages can be as high as 4.5 V when playing rhythmically.
Current consumption remains low (160 μA), and the 9V battery lasts for over 1,500 hours. No soldering is required for wiring. Two lengths of TW cable are included, along with everything needed for complete assembly.
This model fits on a 49 mm Tune-O-Matic spacer. The short (10 mm) potentiometer is well suited to slim-top models. A configuration that's ready to handle busy sounds without ever overloading the electronics.
Other features
-
EMG 57/66 TW Set Brushed Chrome
-
EMG TW Series
-
Dual-mode pickup: humbucker and single coil
-
Integrated Push-Pull selection system
-
57TW (bridge): alnico + steel magnets
-
Clear, powerful sound with single coil
-
Warm, aggressive sound with double winding
-
66TW (neck): ceramic + alnico magnets
-
Fluid, precise and expressive timbre
-
Exclusive EMG three-coil hybrid design
-
Compatible with all EMG pickups
-
Solderless installation via included connectors
-
25K potentiometers suitable for active pickups
-
Standard spacing (Tune-O-Matic) 49mm
-
10mm short shaft potentiometer (Strat)
-
No bridge ground required
-
Requires one 9V battery (not included)
-
Battery life: approx. 1500 hours
-
High output level and very low noise
-
Resonance frequency: 3.47 kHz (single)
-
Resonance frequency: 1.77 kHz (double)
-
Output impedance: 10 kΩ
-
Max. supply voltage: 27V DC
-
Current consumption: 160 μA
-
Output voltage (string): 2.00V (single)
-
Output voltage (string): 3.00V (double)
-
Output voltage (strumming): 3.00V (single)
-
Output voltage (strumming): 4.50V (double)
-
Logo colour: copper (not visible on Metalworks)
-
2 TW microphone cables (40.6 cm and 27.9 cm)
-
4 connection cables (14 cm)
-
1 output cable (15 cm)
-
1 battery cable (18 cm)
-
2 push-pull potentiometers (25K)
-
2 25K tones
-
1 stereo output jack
-
1 input/output bus for 2 microphones
-
1 battery bus
-
2 pairs of fixing screws and springs
-
Mic dimensions: 78.5 x 38.1 x 27.6 mm
-
Thickness: 1.1" (27.9 mm)
-
Weight (each microphone): approx. 120 g
To find out more...
The push-pulls on the EMG 57/66 TW Set Brushed Chrome give your playing a real boost. With a flick of the wrist, you go from roar to biting clarity.
Don't connect the bridge? A real time-saver on old guitars. There's nothing to drill, everything stays clean and reversible.
In the middle of a song, the simple mode explodes with notes that open up. Each attack breathes, each chord stands out clearly.
For rhythmic patterns, the double mode asserts itself with body. As a solo, the single shines and cuts through the mix. Two voices on a single set, ready for dialogue.
Don't connect the bridge? A real time-saver on old guitars. There's nothing to drill, everything stays clean and reversible.
In the middle of a song, the simple mode explodes with notes that open up. Each attack breathes, each chord stands out clearly.
For rhythmic patterns, the double mode asserts itself with body. As a solo, the single shines and cuts through the mix. Two voices on a single set, ready for dialogue.
